Product Model

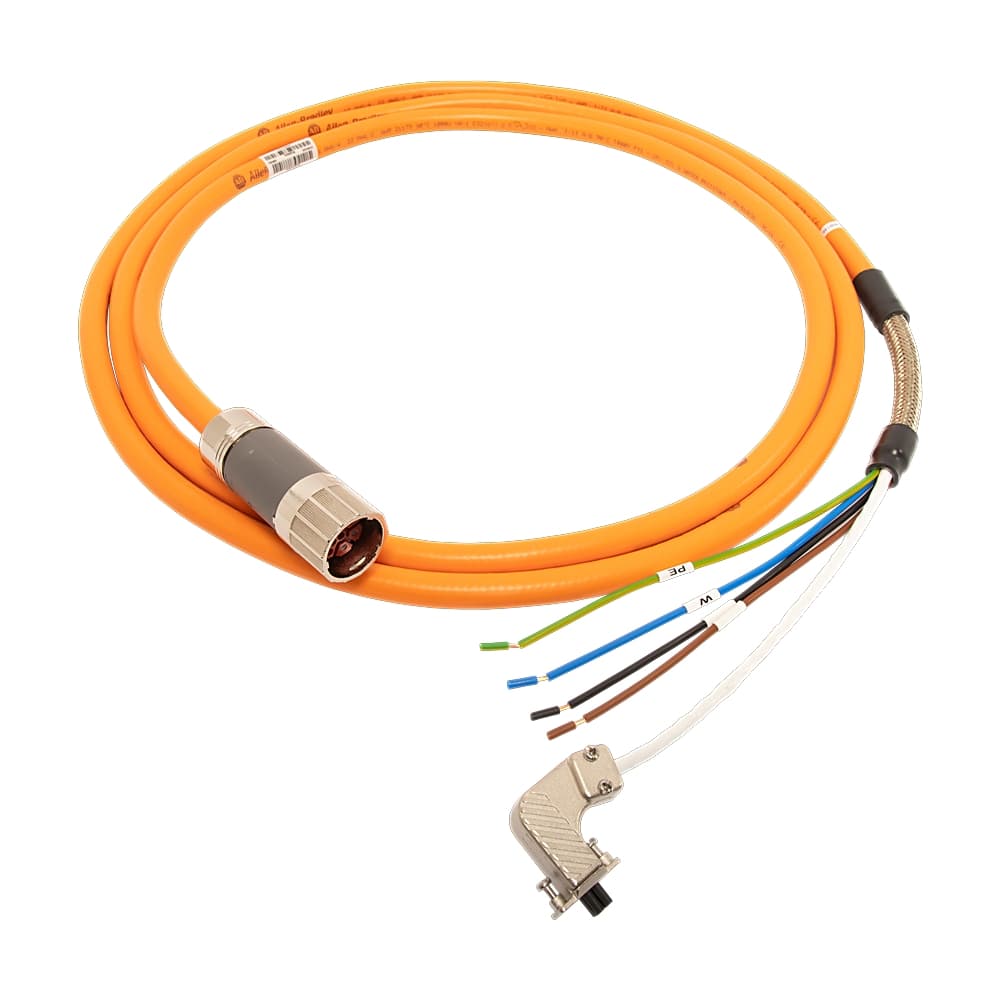

2090-CSWM1DE-18AA50
Selling Points
- 11. High Reliability: The 2090-CSWM1DE-18AA50 is engineered to provide consistent performance, ensuring your system operates smoothly and efficiently.;
- 22. Precise Control: With its precise control capabilities, this cable is ideal for applications requiring high accuracy and reliability.;
- 33. Durable Construction: Built with durable materials, the 2090-CSWM1DE-18AA50 withstands the rigors of industrial environments, extending its lifespan.;
- 44. Versatile Compatibility: Designed for Kinetix drives, this cable is compatible with a wide range of industrial control systems, making it a versatile choice for various applications.;
- 55. Enhanced Performance: The 2090-CSWM1DE-18AA50 delivers enhanced performance, ensuring your system operates at peak efficiency and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Weight | 18.325 | Stock Status | NON_STOCKED |
Dimension Length | 40.64 | Dimension Width | 40.64 |
Lead Time | 39 | Dimension Height | 34.29 |
Quick Turnaround | false | Preferred Availability | false |
Repairable | NOT_REPAIRABLE | Max. conductor temperature | 105 |
Features | Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol | Static bend radius | Standard (non-flex) and continuous flex: 7 times the cable diam |
Accessory component | Cable | Twisted cores | No |
Weight, approx | Standard (non-flex), power wire: 0.136 kg/m | Cable style | Standard, non-flexible |
Nominal cross section conductor (AWG) | 1.62 | Nominal cross section conductor | 0.82 |
Cable description | Power only: 1000V hybrid cable with four power and two ftdback (digital communication) conductors | Cable type | Single motor power only |
Nominal voltage U | 1000 | AWG size | 18 AWG |
Motor-end connector type | Single speedTec DIN connector | Core color | White/blue |
Color cable code | RAL2003 | Conductor surface | Tinned |
Conductor material | Copper | Colour outer sheath | Orange |
Core identification | Colour | With protective conductor | Yes |
Number of cores | 8 | Drive-end connector type | Drive-end, flying-leads with factory pre-installed connector kit (optimized for Kinetix 5700) |
Cable length | 50 m | Core colour | Green/Yellow |
Outer diameter approx. | 15 mm | Drive-end Connector Type | Drive-end, connector kit |
Cable Style | Standard, Non-flex | Accessory Component | Single DSL |
Specifications may be subject to change without notice
