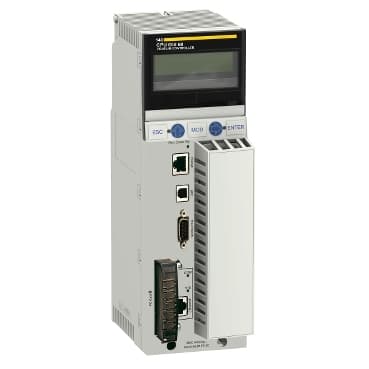

Product Model
140CPU65860C
Selling Points
- 1High-Performance Processing: The 140CPU65860C delivers exceptional processing power and efficiency, ideal for demanding industrial tasks.
- 2Advanced Cooling System: Equipped with an efficient cooling system to maintain optimal performance under heavy loads.
- 3Enhanced Reliability: Built with robust components and rigorous testing to ensure prolonged operation in harsh environments.
- 4Scalable Architecture: Designed to support growing industrial needs with a scalable architecture for easy integration.
- 5Comprehensive Support: Backed by Schneider's comprehensive support services for seamless integration and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Quantum automation platform | Product or Component Type | Unity processor |
Clock frequency | 266 MHz | Number of slots | 16<br />4<br />2<br />10<br />6 |
Number of racks | 2 - local | Number of distributed I/O station | 63 1 1 Modbus Plus |
Number of remote I/O station | 31 - 2 S908 remote I/O<br />31 - 2 ethernet Quantum remote I/O<br />31 - 2 ethernet X80 remote I/O | Discrete I/O number | 8000 inputs, 8000 outputs - distributed - per network Modbus Plus<br />Unlimited (26 slots max) - local<br />Unlimited (31 drops of 28 slots max) - ethernet remote I/O<br />31744 inputs, 31744 outputs - S908 remote I/O |
Analogue I/O number | 500 inputs, 500 outputs - distributed - per network Modbus Plus<br />Unlimited (26 slots max) - local<br />Unlimited (31 drops of 28 slots max) - ethernet remote I/O<br />1984 inputs,1984 outputs - remote | Application specific I/O | Counter<br />Accurate time stamping<br />High-speed interrupt inputs<br />Serial link |
Communication Service | Ethernet router | Number of optional modules | 6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
Maximum number of connections | 1 USB<br />2 AS-Interface - distributed<br />4 AS-Interface - remote<br />6 Ethernet TCP/IP - local<br />6 Modbus Plus - local<br />6 Profibus DP - local<br />1 Modbus RS232/485 Modbus/ASCII) | Integrated connection type | 1 Modbus Plus<br />1 Ethernet TCP/IP<br />1 Modbus<br />1 USB |
Checks | Process control | Memory description | Expandable 8 MB - file storage with PCMCIA card<br />Internal RAM 11264 kB - program and data |
Switch Function | Key switch memory port on/off | Application structure | 1 cyclic/periodic master task - <br />1 periodic fast task - <br />128 I/O interrupt tasks - <br />128 interrupt tasks - <br />32 timer interrupt tasks - <br />4 auxiliary tasks - |
Number of instructions per ms | 10.28 Kinst/ms 100 % Boolean<br />10.07 Kinst/ms 65 % Boolean and 35 % numerical | System overhead | 0.2 ms fast task<br />1 ms master task |
Bus current requirement | 2760 mA | Local signalling | for Ethernet activity (COM) 1 LED (green)<br /> for Ethernet collision 1 LED (red) |
Electrical connection | 1 female connector SUB-D 9 for connecting to the Modbus Plus network<br />1 connector RJ45 for connecting Ethernet network<br />1 connector RJ45 for connecting Modbus bus | Protective treatment | Conformal coating Humiseal 1A33 |
Product Certifications | CSA<br />Misc (Marine)<br />GOST<br />CE<br />UL | Standards | HazLoc |
Specifications may be subject to change without notice
