Product Model

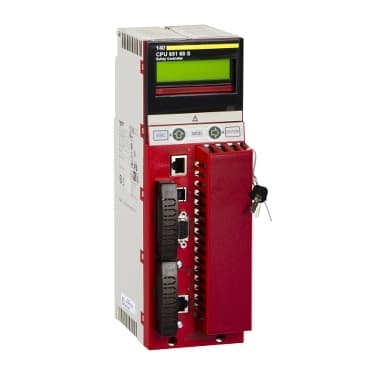

140CPU67160S
Selling Points
- 1Robust Design and Performance: The 140CPU67160S is built with a robust design, ensuring reliable operation in demanding industrial environments.
- 2Advanced Communication Protocols: Supports multiple communication protocols including Ethernet, Modbus, and Modbus Plus for seamless integration with various industrial networks.
- 3High Processing Power: Equipped with a clock frequency of 266 MHz, delivering efficient processing power for complex tasks.
- 4Flexible Configuration: Supports up to 10 slots for expansion modules and peripherals, accommodating specific application requirements.
- 5Comprehensive Warranty: Backed by a 2-year warranty from MRO Electric, ensuring peace of mind with reliable support and repair services.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Quantum automation platform | Product or Component Type | Unity safety processor |
Software Designation | Unity Pro XL safety | Backup type | Lithium battery 990XCP98000 |
Clock frequency | 266 MHz | Number of slots | 10<br />2<br />16<br />6<br />3<br />4 |
Number of racks | 1 - local | Number of remote I/O station | 31 - 1 remote |
Discrete I/O number | Unlimited (13 slots max) - local - forbidden in Hot Standby application<br />31744 inputs, 31744 outputs - remote | Analogue I/O number | Unlimited (26 slots max) - local - forbidden in Hot Standby application<br />1984 inputs,1984 outputs - remote |
Number of optional modules | 6 Ethernet 140NOE77111 | Maximum number of connections | 1 Modbus Plus - local<br />1 Modbus RS232/485 Modbus/ASCII)<br />1<br />1 Ethernet TCP/IP - local<br />6 USB - local |
Integrated connection type | 1 Modbus local<br />1 Modbus Plus local<br />1 USB local<br />1 Ethernet TCP/IP Hot Standby 140NOE77111 local | Checks | Process control<br />Hot standby |
Memory description | Expandable 7168 kB - program with PCMCIA card<br />Expandable 8 MB - file storage with PCMCIA card<br />Internal RAM 1024 kB - 512 kB for data | Switch Function | Key switch memory port on/off |
Application structure | 1 cyclic/periodic master task | Execution time per instruction | 0.09...0.12 µs on word<br />0.105...0.15 µs Boolean<br />0.96...1.02 µs on fixed-point arithmetic |
Execution time for 1 Kinstruction | 5.03 65 % Boolean and 35 % numerical<br />5.14 100 % Boolean | System overhead | 1.5 ms master task |
Bus current requirement | 2500 mA | Maximum supply current | 90 A 140 °F (60 °C) lithium battery<br />60 µA lithium battery |
[Us] rated supply voltage | 3 V DC lithium battery | Battery Capacity | 1200 Ah |
Battery Life | 10 year(s) | Display type | LCD 2 lines of 16 characters |
Local signalling | for Ethernet activity (COM) 1 LED (green)<br /> for Ethernet collision (ERR) 1 LED (red) | Electrical connection | 1 female connector SUB-D 9 for connecting to the Modbus Plus network<br />1 female connector USB type B for connecting to PC<br />2 connectors RJ45 for connecting Modbus bus |
marking | CE | Product Certifications | TÜV Rheinland (SIL3)<br />C-tick<br />CSA |
Specifications may be subject to change without notice
