schneiderPLC/PAC and Controllers
Product Model

140CRA21110

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

35643

In Stock
Last updated: 2025/5/2
View Specifications

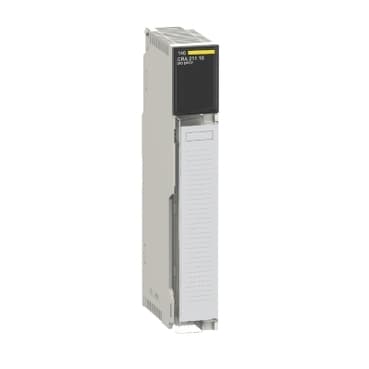

schneider 140CRA21110

Selling Points

  • 1Comprehensive Configurability: Supports various backplane configurations (2, 3, 4, 6, 10, and 16 positions) for diverse system architectures.
  • 2Robust Diagnostics: Includes startup and runtime diagnostics with checksum and RAM address monitoring for robust system health.
  • 3Energy-Efficient Design: Exhibits a power dissipation of 11 W, contributing to its energy-efficient operation.
  • 4Secure Connections: Facilitates secure electrical connections through a 7-pole terminal block.
  • 5Industrial-Grade Durability: Resistant to electrostatic discharge (4 kV contact and 8 kV on air) and electromagnetic fields (9.14 V/m), ensuring reliability in demanding environments.
Product Details
140CRA21110
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon Quantum automation platform
Product or Component Type
DIO drop interface
Number of port
1 single
[Us] rated supply voltage
115/230 V AC
Supply voltage limits
85…276 V
Supply frequency
47...63 Hz
Maximum supply current
0.2 A 115 V<br />0.4 A 230 V
Inrush current
10 A 115 V<br />20 A 230 V
Rated power in VA
50 VA
Associated fuse rating
1.5 A
Output voltage
5.1 V
Nominal output current
3 A
Minimum load current
0 A
Short-circuit protection
With
Output overvoltage protection
With
I/O words
30 I/32 O
Typical backplanes
3 positions<br />2 positions<br />6 positions<br />16 positions<br />10 positions<br />4 positions
Diagnostics startup
RAM address<br />RAM<br />Checksum
Diagnostics run time
RAM address<br />RAM<br />Checksum
Power dissipation in W
11 W
Connections - Terminals
Terminal block, 7 poles
Module format
Standard
Resistance to electrostatic discharge
4 kV contact IEC 801-2<br />8 kV on air IEC 801-2
Resistance to electromagnetic fields
9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Relative Humidity
95 % without condensation
Operating altitude
<= 16404.2 ft (5000 m)
Protective treatment
TC
Standards
UL 508
Product Certifications
CSA Class 1 Division 2<br />UL<br />DNV<br />C-tick<br />GOST

Specifications may be subject to change without notice
