Product Model

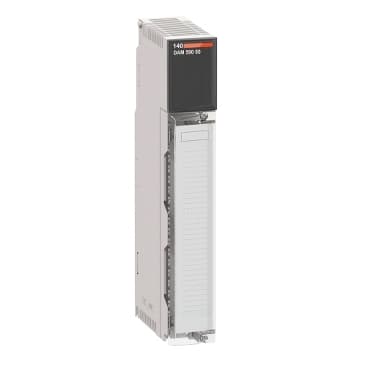

140DAM59000C
Selling Points
- 1The 140DAM59000C is a compact module that minimizes space in your control cabinet.
- 2Features positive logic with high voltage (greater than 85 V) representing a logic "1" and low voltage (less than 15 V) representing a logic "0".
- 3Equipped with LED indicators for easy status monitoring of each input and output channel.
- 4Allows individual or group channel configuration, offering flexibility in its use.
- 5Suitable for various industrial applications including process control, machine control, and building automation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Quantum automation platform | Product or Component Type | Mixed discrete I/O module |
Discrete I/O number | 24 | Discrete input number | 16 2 groups of 8 |
Addressing requirement | 1 input word<br />0.5 output word | Network frequency limits | 47…63 Hz |
Discrete input voltage | 115 V AC | input voltage limits | 132 V typical<br />156 V during 10 s<br />200 V during one cycle |
Voltage state 0 guaranteed | 0...20 V | Voltage state 1 guaranteed | 79...132 V 60 Hz<br />85...132 V 50 Hz |
Current state 0 guaranteed | <= 0.5 mA | Current state 1 guaranteed | <= 11 mA 50 Hz<br /><= 13.2 mA 60 Hz |
Input impedance | 14400 Ohm capacitive | Response time | 4.9...0.75 ms at state 0 to state 1<br />7.3...12.3 ms at state 1 to state 0 |
Discrete output number | 8 2 groups of 4 | Discrete output type | Solid state |
Discrete output voltage | 115 V | Output voltage limits | 156 V AC during 10 s<br />200 V AC during 1 cycle<br />85...132 V typical AC typical |
Minimum load | 5 mA | Maximum load current | <= 4 A per point<br /><= 8 A per group<br /><= 8 A per module |
Maximum voltage drop | <1.5 V | Absolute maximum output | 20 A 2 cycles per point<br />26 A 3 cycles per group<br />30 A 1 cycle per point<br />30 A 2 cycles per group<br />45 A 1 cycle per group<br />10 A 3 cycles per point |
DV/dt | 400 V/µs | Maximum leakage current | 2.1 mA 115 V AC input circuit<br />2 mA output circuit |
Response time on output | <= 0.5 ms at state 0 to state 1<br /><= 0.5 ms at state 1 to state 0 | Protection Type | Internal output protection by 5 A fuse per group<br />On output by RC filter |
Isolation between group | 1000 Vrms for 1 minute | Isolation between channels and bus | 1780 Vrms for 1 minute |
Fault indication | Blown fuse on output<br />Loss of field power on output | Power dissipation | 5.5 W + (1.1 x total module load current) |
External power requirement | 85...132 V AC for output circuit | Local signalling | for bus communication is present (Active) 1 LED (green)<br /> for no voltage in output and input (F) 1 LED (red)<br /> for output is turned on 2 LEDs (green)<br /> for fault detected on the input point 2 LEDs (red)<br /> for fault detected on the output point 2 LEDs (red) |
marking | CE | Bus current requirement | 250 mA |
Net Weight | 0.99 lb(US) (0.45 kg) | Resistance to electrostatic discharge | 4 kV contact IEC 801-2<br />8 kV on air IEC 801-2 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Relative Humidity | 95 % without condensation |
Operating altitude | <= 16404.2 ft (5000 m) | Protective treatment | Conformal coating Humiseal 1A33 |
Standards | CSA C22.2 No 142<br />FM Class 1 Division 2<br />UL 508 | Product Certifications | cUL |
Specifications may be subject to change without notice
