Product Model

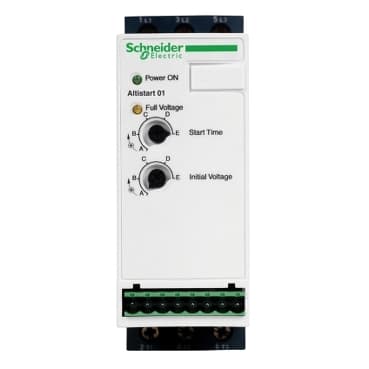

ATS01N109FT
Selling Points
- 1Supports 1-5 HP and 1.1-4.0 kW for various asynchronous motor applications.
- 2Ensures continuous operation with an integrated bypass contactor.
- 3Reduces power dissipation with a heat sink assembly.
- 4Easy cabling and fast configuration for simplified installation.
- 5Conforms to EN/IEC 60947-4-2 standards for reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Altistart 01 | Product or Component Type | Soft starter |
Product destination | Asynchronous motors | Product Specific Application | Simple machine |
Device short name | ATS01 | Phase | 1 phase |
[Us] rated supply voltage | 110...480 V - 10...10 % | Motor power kW | 4 kW, 3 phase 400 V<br />1.5 kW, 3 phase 230 V<br />1.1 kW, 1 phase 230 V |
Maximum Horse Power Rating | 1 hp, 3 phase 210 V<br />2 hp, 3 phase 230 V<br />5 hp, 3 phase 460 V | IcL starter rating | 9 A |
Utilisation category | AC-53B EN/IEC 60947-4-2 | Current consumption | 45 A at nominal load |
Type of start | Start with voltage ramp | Power dissipation in W | 1 W at full load and at end of starting<br />46 W in transient state |
Assembly style | With heat sink | Function Available | Integrated bypass |
Supply voltage limits | 99…528 V | Supply frequency | 50...60 Hz - 5...5 % |
Network Frequency | 47.5...63 Hz | Output voltage | <= power supply voltage |
[Uc] control circuit voltage | 110 V AC +/- 10 % 35 mA<br />24 V AC/DC +/- 10 % 30 mA<br />240 V AC +/- 10 % 80 mA | Starting time | 1 s / 100<br />5 s / 20<br />Adjustable from 1 to 5 s |
Starting torque | 30...80 % of starting torque of motor connected directly on the line supply | Discrete output current | 2 A DC-13<br />3 A AC-15 |
Tightening torque | 4.4 lbf.in (0.5 N.m)<br />16.8…22.1 lbf.in (1.9…2.5 N.m) | Electrical connection | 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit<br />Screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit<br />4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit<br />Screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit<br />Screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit<br />4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit<br />Screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit<br />4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit<br />4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit<br />Screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit |
marking | CE | Operating position | Vertical +/- 10 degree |
Height | 4.9 in (124 mm) | Width | 1.8 in (45 mm) |
Depth | 5.2 in (131 mm) | Net Weight | 0.62 lb(US) (0.28 kg) |
compatibility code | ATS01N1 | Motor power range AC-3 | 1.1…2 kW 200…240 V 1 phase<br />2.2…3 kW 200…240 V 3 phase<br />4…6 kW 380…440 V 3 phase |
Motor starter type | Soft starter | Electromagnetic compatibility | Conducted and radiated emissions level B CISPR 11<br />Conducted and radiated emissions level B IEC 60947-4-2<br />Damped oscillating waves level 3 IEC 61000-4-12<br />Electrostatic discharge level 3 IEC 61000-4-2<br />EMC immunity level 3 EN 50082-1<br />EMC immunity level B EN 50082-2<br />Harmonics level 3 IEC 1000-3-2<br />Harmonics level 3 IEC 1000-3-4<br />Immunity to conducted interference caused by radio-electrical fields level 3 IEC 61000-4-6<br />Immunity to electrical transients level 4 IEC 61000-4-4<br />Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3<br />Micro-cuts and voltage fluctuation IEC 61000-4-11<br />Voltage/current impulse level 3 IEC 61000-4-5 |
Standards | EN/IEC 60947-4-2 | Product Certifications | C-tick<br />GOST<br />CSA<br />CCC<br />UL |
IP Degree of Protection | IP20 | Pollution degree | 2 EN/IEC 60947-4-2 |
Vibration resistance | 1 gn 13…150 Hz)EN/IEC 60068-2-6<br />1.5 mm peak to peak 3…13 Hz)EN/IEC 60068-2-6 | Shock resistance | 15 gn 11 ms EN/IEC 60068-2-27 |
Relative humidity | 5…95 % without condensation or dripping water EN/IEC 60068-2-3 | Ambient air temperature for operation | 14…104 °F (-10…40 °C) without derating)<br />104…122 °F (40…50 °C) with current derating of 2 % per °C) |
Ambient air temperature for storage | -13…158 °F (-25…70 °C) EN/IEC 60947-4-2 | Operating altitude | <= 3280.84 ft (1000 m) without derating<br />> 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m |
