Product Model

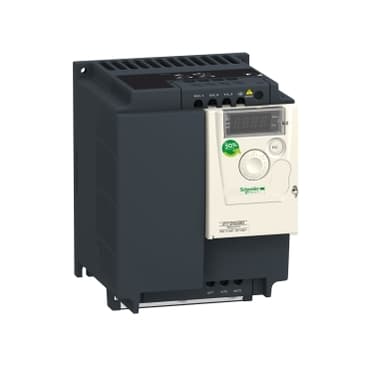

ATV12HU30M3
Selling Points
- 1High Efficiency: Optimized for up to 30% energy savings with transient over torque function.
- 2Versatile Applications: Suitable for food industry, small handling applications, medical sector, and renewable energy.
- 3Reliability: Designed for a 10-year service life with reduced maintenance costs.
- 4Easy Installation: Integrated Modbus communication connector simplifies installation; requires only one screwdriver.
- 5Advanced Performance: Exceptional starting and stopping motor performance, eliminating the need for dynamic braking in most applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Altivar 12 | Product or Component Type | Variable speed drive |
Product Specific Application | Simple machine | Mounting Mode | Cabinet mount |
communication port protocol | Modbus | Supply frequency | 50/60 Hz +/- 5 % |
[Us] rated supply voltage | 200...240 V - 15...10 % | Nominal output current | 12.2 A |
Maximum Horse Power Rating | 4 hp | Motor power kW | 3 kW |
EMC filter | Without EMC filter | IP degree of protection | IP20 |
Discrete input number | 4 | Discrete output number | 2 |
Analogue input number | 1 | Analogue output number | 1 |
Relay output number | 1 | Physical interface | 2-wire RS 485 |
Connector Type | 1 RJ45 | Continuous output current | 12.2 A 4 kHz |
Method of access | Server Modbus serial | Speed drive output frequency | 0.5…400 Hz |
Speed range | 1…20 | Sampling duration | 20 ms +/- 1 ms logic input<br />10 ms analogue input |
Linearity error | +/- 0.3 % of maximum value analogue input | Frequency resolution | Analog input converter A/D, 10 bits<br />Display unit 0.1 Hz |
Time constant | 20 ms +/- 1 ms for reference change | Transmission Rate | 9.6 kbit/s<br />19.2 kbit/s<br />38.4 kbit/s |
Transmission frame | RTU | Number of addresses | 1…247 |
Data format | 8 bits, configurable odd, even or no parity | Communication service | Read holding registers (03) 29 words<br />Write single register (06) 29 words<br />Write multiple registers (16) 27 words<br />Read/write multiple registers (23) 4/4 words<br />Read device identification (43) |
Type of polarization | No impedance | 4 quadrant operation possible | False |
Asynchronous motor control profile | Sensorless flux vector control<br />Quadratic voltage/frequency ratio<br />Voltage/frequency ratio (V/f) | Maximum output frequency | 4 kHz |
Transient overtorque | 150…170 % of nominal motor torque depending on drive rating and type of motor | Acceleration and deceleration ramps | Linear from 0 to 999.9 s<br />S<br />U |
Motor slip compensation | Adjustable<br />Preset in factory | Switching frequency | 2...16 kHz adjustable<br />4...16 kHz with derating factor |
Nominal switching frequency | 4 kHz | Braking to standstill | By DC injection |
Brake chopper integrated | False | Line current | 19.0 A 100 V heavy duty)<br />15.9 A 120 V heavy duty) |
Maximum Input Current per Phase | 15.9 A | Maximum output voltage | 240 V |
Apparent power | 6.6 kVA 240 V heavy duty) | Maximum transient current | 18.3 A 60 s heavy duty)<br />20.1 A 2 s heavy duty) |
Network Frequency | 50-60 Hz | Relative symmetric network frequency tolerance | 5 % |
Prospective line Isc | 5 kA | Base load current at high overload | 12.2 A |
Power dissipation in W | Forced cooling 94.0 W | With safety function Safely Limited Speed (SLS) | False |
With safety function Safe brake management (SBC/SBT) | False | With safety function Safe Operating Stop (SOS) | False |
With safety function Safe Position (SP) | False | With safety function Safe programmable logic | False |
With safety function Safe Speed Monitor (SSM) | False | With safety function Safe Stop 1 (SS1) | False |
With sft fct Safe Stop 2 (SS2) | False | With safety function Safe torque off (STO) | False |
With safety function Safely Limited Position (SLP) | False | With safety function Safe Direction (SDI) | False |
Protection type | Line supply overvoltage<br />Line supply undervoltage<br />Overcurrent between output phases and earth<br />Overheating protection<br />Short-circuit between motor phases<br />Against input phase loss in three-phase<br />Thermal motor protection via the drive by continuous calculation of I²t | Tightening torque | 10.6 lbf.in (1.2 N.m) |
Insulation | Electrical between power and control | Quantity per Set | Set of 1 |
Width | 5.5 in (140 mm) | Height | 7.2 in (184 mm) |
Depth | 5.6 in (141.2 mm) | Net Weight | 4.4 lb(US) (2 kg) |
Operating altitude | <= 3280.84 ft (1000 m) without derating<br />> 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m | Operating position | Vertical +/- 10 degree |
Product Certifications | NOM<br />CSA<br />C-tick<br />UL<br />GOST<br />RCM<br />KC | marking | CE |
Standards | UL 508C<br />UL 618000-5-1<br />IEC 61800-5-1<br />IEC 61800-3 | Assembly style | With heat sink |
Electromagnetic compatibility | Electrical fast transient/burst immunity test level 4 IEC 61000-4-4<br />Electrostatic discharge immunity test level 3 IEC 61000-4-2<br />Immunity to conducted disturbances level 3 IEC 61000-4-6<br />Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3<br />Surge immunity test level 3 IEC 61000-4-5<br />Voltage dips and interruptions immunity test IEC 61000-4-11 | Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3<br />Class 3S2 according to IEC 60721-3-3 |
Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms | Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz | Volume of cooling air | 4332.5 Gal/hr(US) (16.4 m3/h) |
Overvoltage category | Class III | Regulation loop | Adjustable PID regulator |
Electromagnetic emission | Radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable<br />Conducted emissions IEC 61800-3 | Vibration resistance | 1 gn 13…200 Hz)IEC 60068-2-6<br />1.5 mm peak to peak 3…13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6 |
Shock resistance | 15 gn 11 ms IEC 60068-2-27 | Relative humidity | 5…95 % without condensation IEC 60068-2-3<br />5…95 % without dripping water IEC 60068-2-3 |
Noise level | 50 dB | Pollution degree | 2 |
Ambient air transport temperature | -13…158 °F (-25…70 °C) | Ambient air temperature for operation | 14…122 °F (-10…50 °C) without derating<br />122…140 °F (50…60 °C) with current derating 2.2 % per °C |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Specifications may be subject to change without notice
