Product Model

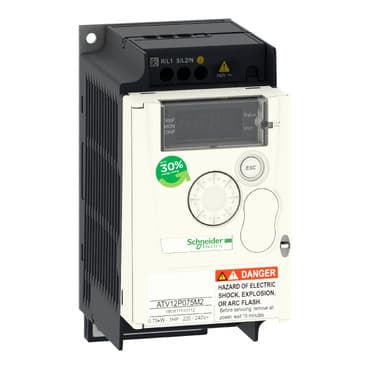

ATV12P075M2
Selling Points
- 1Exceptional starting and stopping motor performance eliminates the need for oversizing the drive or adding dynamic braking.
- 2Intuitive user interface with rotary adjustment and navigation button for easy setup and operation.
- 3Compact design with IP20 enclosure for reliability in harsh environments.
- 4Optimized for applications like ventilation and pumping with up to 30% energy savings.
- 5Compatible with induction and asynchronous motors, suitable for single-phase applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Altivar 12 | Product or Component Type | Variable speed drive |
Product Specific Application | Simple machine | Mounting Mode | Cabinet mount |
communication port protocol | Modbus | Supply frequency | 50/60 Hz +/- 5 % |
[Us] rated supply voltage | 200...240 V - 15...10 % | Nominal output current | 4.2 A |
Maximum Horse Power Rating | 1 hp | Motor power kW | 0.75 kW |
EMC filter | Integrated | IP degree of protection | IP20 |
Discrete input number | 4 | Discrete output number | 2 |
Analogue input number | 1 | Analogue output number | 1 |
Relay output number | 1 | Physical interface | 2-wire RS 485 |
Connector Type | 1 RJ45 | Continuous output current | 4.2 A 4 kHz |
Method of access | Server Modbus serial | Speed drive output frequency | 0.5…400 Hz |
Speed range | 1…20 | Sampling duration | 20 ms +/- 1 ms logic input<br />10 ms analogue input |
Linearity error | +/- 0.3 % of maximum value analogue input | Frequency resolution | Analog input converter A/D, 10 bits<br />Display unit 0.1 Hz |
Time constant | 20 ms +/- 1 ms for reference change | Transmission Rate | 9.6 kbit/s<br />19.2 kbit/s<br />38.4 kbit/s |
Transmission frame | RTU | Number of addresses | 1…247 |
Data format | 8 bits, configurable odd, even or no parity | Communication service | Read holding registers (03) 29 words<br />Write single register (06) 29 words<br />Write multiple registers (16) 27 words<br />Read/write multiple registers (23) 4/4 words<br />Read device identification (43) |
Type of polarization | No impedance | 4 quadrant operation possible | False |
Asynchronous motor control profile | Sensorless flux vector control<br />Voltage/frequency ratio (V/f)<br />Quadratic voltage/frequency ratio | Maximum output frequency | 4 kHz |
Transient overtorque | 150…170 % of nominal motor torque depending on drive rating and type of motor | Acceleration and deceleration ramps | S<br />U<br />Linear from 0 to 999.9 s |
Motor slip compensation | Preset in factory<br />Adjustable | Switching frequency | 2...16 kHz adjustable<br />4...16 kHz with derating factor |
Nominal switching frequency | 4 kHz | Braking to standstill | By DC injection |
Brake chopper integrated | False | Line current | 10.2 A 100 V heavy duty)<br />8.5 A 120 V heavy duty) |
Maximum Input Current per Phase | 8.5 A | Maximum output voltage | 240 V |
Apparent power | 2.0 kVA 240 V heavy duty) | Maximum transient current | 6.3 A 60 s heavy duty)<br />6.9 A 2 s heavy duty) |
Network Frequency | 50-60 Hz | Relative symmetric network frequency tolerance | 5 % |
Prospective line Isc | 1 kA | Base load current at high overload | 4.2 A |
Power dissipation in W | Natural 44.0 W | With safety function Safely Limited Speed (SLS) | False |
With safety function Safe brake management (SBC/SBT) | False | With safety function Safe Operating Stop (SOS) | False |
With safety function Safe Position (SP) | False | With safety function Safe programmable logic | False |
With safety function Safe Speed Monitor (SSM) | False | With safety function Safe Stop 1 (SS1) | False |
With sft fct Safe Stop 2 (SS2) | False | With safety function Safe torque off (STO) | False |
With safety function Safely Limited Position (SLP) | False | With safety function Safe Direction (SDI) | False |
Protection type | Line supply overvoltage<br />Line supply undervoltage<br />Overcurrent between output phases and earth<br />Overheating protection<br />Short-circuit between motor phases<br />Against input phase loss in three-phase<br />Thermal motor protection via the drive by continuous calculation of I²t | Tightening torque | 7.08 lbf.in (0.8 N.m) |
Insulation | Electrical between power and control | Quantity per Set | Set of 1 |
Width | 2.8 in (72 mm) | Height | 5.6 in (143 mm) |
Depth | 4.02 in (102.2 mm) | Net Weight | 1.5 lb(US) (0.7 kg) |
Operating altitude | > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m<br /><= 3280.84 ft (1000 m) without derating | Operating position | Vertical +/- 10 degree |
Product Certifications | NOM<br />CSA<br />C-tick<br />UL<br />GOST<br />RCM<br />KC | marking | CE |
Standards | UL 508C<br />UL 618000-5-1<br />IEC 61800-5-1<br />IEC 61800-3 | Assembly style | On base plate |
Electromagnetic compatibility | Electrical fast transient/burst immunity test level 4 IEC 61000-4-4<br />Electrostatic discharge immunity test level 3 IEC 61000-4-2<br />Immunity to conducted disturbances level 3 IEC 61000-4-6<br />Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3<br />Surge immunity test level 3 IEC 61000-4-5<br />Voltage dips and interruptions immunity test IEC 61000-4-11 | Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3<br />Class 3S2 according to IEC 60721-3-3 |
Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms | Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz | Overvoltage category | Class III |
Regulation loop | Adjustable PID regulator | Electromagnetic emission | Radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable<br />Conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <16.4 ft (5 m)<br />Conducted emissions with integrated EMC filter environment 1 category C2 IEC 61800-3 2...12 kHz shielded motor cable <16.4 ft (5 m)<br />Conducted emissions with integrated EMC filter environment 1 category C2 IEC 61800-3 2, 4 and 16 kHz shielded motor cable <32.8 ft (10 m)<br />Conducted emissions with additional EMC filter environment 1 category C1 IEC 61800-3 4...12 kHz shielded motor cable <65.6 ft (20 m)<br />Conducted emissions with additional EMC filter environment 1 category C2 IEC 61800-3 4...12 kHz shielded motor cable <164.04 ft (50 m)<br />Conducted emissions with additional EMC filter environment 2 category C3 IEC 61800-3 4...12 kHz shielded motor cable <164.04 ft (50 m) |
Vibration resistance | 1 gn 13…200 Hz)IEC 60068-2-6<br />1.5 mm peak to peak 3…13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6 | Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
Relative humidity | 5…95 % without condensation IEC 60068-2-3<br />5…95 % without dripping water IEC 60068-2-3 | Noise level | 0 dB |
Pollution degree | 2 | Ambient air transport temperature | -13…158 °F (-25…70 °C) |
Ambient air temperature for operation | 14…104 °F (-10…40 °C) without derating<br />104…140 °F (40…60 °C) with current derating 2.2 % per °C | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Specifications may be subject to change without notice
