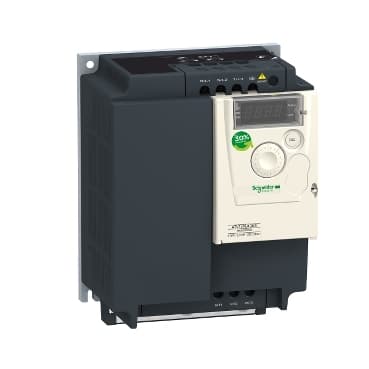

Product Model
ATV12PU30M3
Selling Points
- 1Advanced PID and catch on the fly functions for precise control.
- 2Basic cabling and easy motor control settings for simple installation.
- 3Conforms to IEC, UL, and other international standards for reliability.
- 4Modbus communication protocol integrated for seamless connectivity.
- 5Suitable for conveyors, pumps, extractors, and HVAC machines in various industries.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Altivar 12 | Product or Component Type | Variable speed drive |
Product Specific Application | Simple machine | Mounting Mode | Cabinet mount |
communication port protocol | Modbus | Supply frequency | 50/60 Hz +/- 5 % |
[Us] rated supply voltage | 200...240 V - 15...10 % | Nominal output current | 12.2 A |
Motor power kW | 3 kW | EMC filter | Without EMC filter |
IP degree of protection | IP20 | Discrete input number | 4 |
Discrete output number | 2 | Analogue input number | 1 |
Analogue output number | 1 | Relay output number | 1 |
Physical interface | 2-wire RS 485 | Connector Type | 1 RJ45 |
Continuous output current | 12.2 A 4 kHz | Method of access | Server Modbus serial |
Speed drive output frequency | 0.5…400 Hz | Speed range | 1…20 |
Sampling duration | 20 ms +/- 1 ms logic input<br />10 ms analogue input | Linearity error | +/- 0.3 % of maximum value analogue input |
Frequency resolution | Analog input converter A/D, 10 bits<br />Display unit 0.1 Hz | Time constant | 20 ms +/- 1 ms for reference change |
Transmission Rate | 9.6 kbit/s<br />19.2 kbit/s<br />38.4 kbit/s | Transmission frame | RTU |
Number of addresses | 1…247 | Data format | 8 bits, configurable odd, even or no parity |
Communication service | Read holding registers (03) 29 words<br />Write single register (06) 29 words<br />Write multiple registers (16) 27 words<br />Read/write multiple registers (23) 4/4 words<br />Read device identification (43) | Type of polarization | No impedance |
4 quadrant operation possible | False | Asynchronous motor control profile | Sensorless flux vector control<br />Voltage/frequency ratio (V/f)<br />Quadratic voltage/frequency ratio |
Maximum output frequency | 4 kHz | Transient overtorque | 150…170 % of nominal motor torque depending on drive rating and type of motor |
Acceleration and deceleration ramps | S<br />U<br />Linear from 0 to 999.9 s | Motor slip compensation | Preset in factory<br />Adjustable |
Switching frequency | 2...16 kHz adjustable<br />4...16 kHz with derating factor | Nominal switching frequency | 4 kHz |
Braking to standstill | By DC injection | Brake chopper integrated | False |
Line current | 19.0 A 100 V heavy duty)<br />15.9 A 120 V heavy duty) | Maximum Input Current per Phase | 15.9 A |
Maximum output voltage | 240 V | Apparent power | 6.6 kVA 240 V heavy duty) |
Maximum transient current | 18.3 A 60 s heavy duty)<br />20.1 A 2 s heavy duty) | Network Frequency | 50-60 Hz |
Relative symmetric network frequency tolerance | 5 % | Prospective line Isc | 5 kA |
Base load current at high overload | 12.2 A | Power dissipation in W | Natural 94.0 W |
With safety function Safely Limited Speed (SLS) | False | With safety function Safe brake management (SBC/SBT) | False |
With safety function Safe Operating Stop (SOS) | False | With safety function Safe Position (SP) | False |
With safety function Safe programmable logic | False | With safety function Safe Speed Monitor (SSM) | False |
With safety function Safe Stop 1 (SS1) | False | With sft fct Safe Stop 2 (SS2) | False |
With safety function Safe torque off (STO) | False | With safety function Safely Limited Position (SLP) | False |
With safety function Safe Direction (SDI) | False | Protection type | Line supply overvoltage<br />Line supply undervoltage<br />Overcurrent between output phases and earth<br />Overheating protection<br />Short-circuit between motor phases<br />Against input phase loss in three-phase<br />Thermal motor protection via the drive by continuous calculation of I²t |
Tightening torque | 10.6 lbf.in (1.2 N.m) | Insulation | Electrical between power and control |
Quantity per Set | Set of 1 | Width | 5.5 in (140 mm) |
Height | 7.2 in (184 mm) | Depth | 3.9 in (100.2 mm) |
Net Weight | 3.5 lb(US) (1.6 kg) | Operating altitude | <= 3280.84 ft (1000 m) without derating<br />> 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m |
Operating position | Vertical +/- 10 degree | Product Certifications | NOM<br />CSA<br />C-tick<br />UL<br />GOST<br />RCM<br />KC |
marking | CE | Standards | UL 508C<br />UL 618000-5-1<br />IEC 61800-5-1<br />IEC 61800-3 |
Assembly style | On base plate | Electromagnetic compatibility | Electrical fast transient/burst immunity test level 4 IEC 61000-4-4<br />Electrostatic discharge immunity test level 3 IEC 61000-4-2<br />Immunity to conducted disturbances level 3 IEC 61000-4-6<br />Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3<br />Surge immunity test level 3 IEC 61000-4-5<br />Voltage dips and interruptions immunity test IEC 61000-4-11 |
Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3<br />Class 3S2 according to IEC 60721-3-3 | Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz | Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
Overvoltage category | Class III | Regulation loop | Adjustable PID regulator |
Electromagnetic emission | Radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable<br />Conducted emissions IEC 61800-3 | Vibration resistance | 1 gn 13…200 Hz)IEC 60068-2-6<br />1.5 mm peak to peak 3…13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6 |
Shock resistance | 15 gn 11 ms IEC 60068-2-27 | Relative humidity | 5…95 % without condensation IEC 60068-2-3<br />5…95 % without dripping water IEC 60068-2-3 |
Noise level | 0 dB | Pollution degree | 2 |
Ambient air transport temperature | -13…158 °F (-25…70 °C) | Ambient air temperature for operation | 14…104 °F (-10…40 °C) without derating<br />104…140 °F (40…60 °C) with current derating 2.2 % per °C |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
