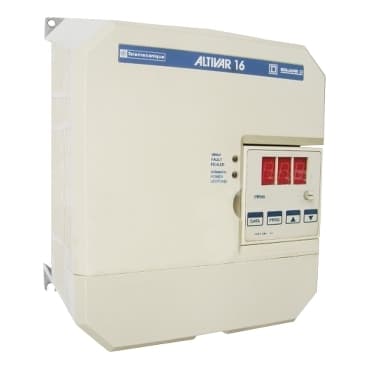

Product Model
ATV16U18N4
Selling Points
- 1High Performance: The ATV16U18N4 offers advanced technology with a 16-bit microprocessor and ASIC circuit for efficient motor control.
- 2Robust Protection: Equipped with overvoltage, undervoltage, and short circuit protection to ensure safe operation.
- 3Compact Design: Compact design with surface mount technology for easy integration into various applications.
- 4Versatile Applications: Suitable for machines with high inertia and fast cycles, including overhauling loads and synchronous motors.
- 5Reliable Operation: Automatic adjustment of acceleration and deceleration ramp times for smooth motor operation, reducing wear and tear.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Altivar 16 | Product or Component Type | Variable speed drive |
Product destination | Asynchronous motors | [Us] rated supply voltage | 380...500 V - 15...10 % |
Supply frequency | 50/60 Hz +/- 5 % | Network frequency limits | 47.5…63 Hz |
Phase | 3 phase | Motor power kW | 0.75 kW |
Maximum Horse Power Rating | 1 hp | Line current | 3.9 A 380 V<br />3.5 A 500 V |
Apparent power | 5 kVA 400 V | Prospective line Isc | 5 kA |
Continuous output current | 2.3 A 380 V<br />2.1 A 500 V | Speed drive output frequency | 0.5…400 Hz |
Nominal switching frequency | 4 kHz | Switching frequency | 12...16 kHz with derating factor<br />2...12 kHz adjustable |
Local signalling | for DC bus energized 1 LED (red) | Output voltage | <= power supply voltage |
communication port protocol | Modbus | Connector Type | 1 RJ45 |
Physical interface | 2-wire RS 485 | Transmission frame | RTU |
Transmission Rate | 9600 bps or 19200 bps | Data format | 8 bits, 1 stop, odd even or no configurable parity |
Height | 7.9 in (200 mm) | Width | 7.09 in (180 mm) |
Depth | 5.7 in (144 mm) | Option card | Communication card APOGEE FLN<br />Communication card BACnet<br />Communication card LonWorks<br />Communication card METASYS N2 |
IP degree of protection | IP31 EN 60530<br />IP31 EN 61800-5-2<br />IP31 IEC 60529<br />IP31 IEC 61800-5-1 | Ambient air temperature for operation | 14…104 °F (-10…40 °C) without derating)<br />104…122 °F (40…50 °C) with derating factor) |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Operating altitude | <= 6561.68 ft (2000 m)<br />3280.84...9842.52 ft (1000...3000 m) |
Specifications may be subject to change without notice
