Product Model

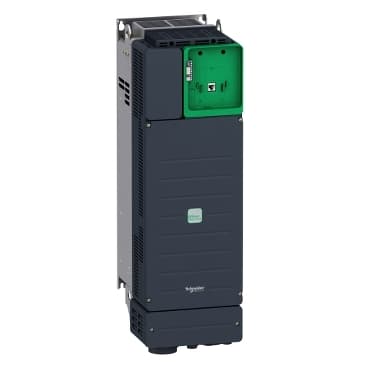

ATV340D37N4E
Selling Points
- 1High-Performance Motor Control: Precise control over motor speed for optimal performance in demanding applications.
- 2Energy Efficiency: Optimizes energy consumption by adjusting motor speed based on process requirements, reducing environmental impact.
- 3Robust Design & Safety: Compact and robust design with advanced protection features for overcurrent and overvoltage protection.
- 4Versatile Connectivity: Equipped with Ethernet connectivity and various communication protocols for seamless integration into automation systems.
- 5Comprehensive Diagnostic Capabilities: Intuitive interface and diagnostic tools streamline commissioning and maintenance tasks, reducing downtime.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Altivar Machine ATV340 | Product or Component Type | Variable speed drive |
Product Specific Application | Machine | Mounting Mode | Wall mount |
Variant | Standard version | communication port protocol | Modbus TCP<br />Modbus serial<br />EtherNet/IP |
Option card | communication module, PROFINET<br /> communication module, DeviceNet<br /> communication module, CANopen<br /> communication module, EtherCAT | Phase | 3 phase |
Supply frequency | 50...60 Hz +/- 5 % | [Us] rated supply voltage | 380...480 V - 15...10 % |
Nominal output current | 74.5 A | Motor power kW | 45 kW normal duty<br />37 kW heavy duty |
Maximum Horse Power Rating | 60 hp normal duty<br />50 hp heavy duty | EMC filter | Class C3 EMC filter integrated |
IP degree of protection | IP20 | Degree of protection | UL type 1 |
Discrete input number | 8 | Discrete input type | PTI safe torque off 0…30 kHz, 24 V DC 30 V)<br />DI1...DI5 programmable as pulse input, 24 V DC 30 V)3.5 kOhm<br /> programmable |
number of preset speeds | 16 preset speeds | Discrete output number | 1.0 |
Discrete output type | Programmable output DQ1, DQ2 30 V DC 100 mA | Analogue input number | 3 |
Analogue input type | AI1 software-configurable current 0...20 mA 250 Ohm 12 bits<br />AI1 software-configurable temperature probe or water level sensor<br />AI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits<br />AI2 software-configurable voltage - 10...10 V DC 31.5 kOhm 12 bits | Analogue output number | 2 |
Analogue output type | Software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits<br />Software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits | Relay output number | 3 |
Output voltage | <= power supply voltage | Relay output type | Relay outputs R1A<br />Relay outputs R1C 100000 cycles<br />Relay outputs R2A<br />Relay outputs R2C 100000 cycles |
Maximum switching current | Relay output R1C resistive, cos phi = 1 3 A 250 V AC<br />Relay output R1C resistive, cos phi = 1 3 A 30 V DC<br />Relay output R1C inductive, cos phi = 0.4 7 ms 2 A 250 V AC<br />Relay output R1C inductive, cos phi = 0.4 7 ms 2 A 30 V DC<br />Relay output R2C resistive, cos phi = 1 5 A 250 V AC<br />Relay output R2C resistive, cos phi = 1 5 A 30 V DC<br />Relay output R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC<br />Relay output R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC | Minimum switching current | Relay output R1B 5 mA 24 V DC<br />Relay output R2C 5 mA 24 V DC |
Physical interface | 2-wire RS 485 | Connector Type | 3 RJ45 |
Method of access | Slave Modbus RTU<br />Slave Modbus TCP | Transmission Rate | 4.8 kbit/s<br />9.6 kbit/s<br />19.2 kbit/s<br />38.4 kbit/s |
Transmission frame | RTU | Number of addresses | 1…247 |
Data format | 8 bits, configurable odd, even or no parity | Type of polarization | No impedance |
4 quadrant operation possible | True | Asynchronous motor control profile | Optimized torque mode<br />Variable torque standard<br />Constant torque standard |
Synchronous motor control profile | Reluctance motor<br />Permanent magnet motor | Pollution degree | 2 |
Maximum output frequency | 0.599 kHz | Acceleration and deceleration ramps | Linear adjustable separately from 0.01...9999 s<br />S, U or customized |
Motor slip compensation | Adjustable<br />Can be suppressed<br />Automatic whatever the load<br />Not available in permanent magnet motor law | Switching frequency | 2...16 kHz adjustable<br />4...16 kHz with derating factor |
Nominal switching frequency | 4 kHz | Braking to standstill | By DC injection |
Brake chopper integrated | True | Line current | 79.8 A 380 V with internal line choke normal duty)<br />69.1 A 480 V with internal line choke normal duty)<br />67.1 A 380 V with internal line choke heavy duty)<br />59 A 480 V with internal line choke heavy duty)<br />67.1 A<br />59.0 A |
Maximum Input Current per Phase | 79.8 A | Maximum output voltage | 480 V |
Apparent power | 57.4 kVA 480 V normal duty)<br />49.1 kVA 480 V heavy duty) | Maximum transient current | 105.6 A 60 s normal duty)<br />105.6 A 2 s normal duty)<br />111.8 A 60 s heavy duty)<br />111.8 A 2 s heavy duty) |
Electrical connection | Control screw terminal 0.75...1.5 mm² AWG 18...AWG 16<br />Line side screw terminal 35...50 mm² AWG 2...AWG 1<br />DC bus screw terminal 35...50 mm² AWG 3...AWG 1<br />Motor screw terminal 50 mm² AWG 1 | Prospective line Isc | 50 kA |
Base load current at high overload | 74.5 A | Base load current at low overload | 88.0 A |
Power dissipation in W | Natural convection 90 W 380 V 4 kHz heavy duty)<br />Forced convection 796 W 380 V 4 kHz heavy duty)<br />Natural convection 105 W 380 V 4 kHz normal duty)<br />Forced convection 943 W 380 V 4 kHz normal duty) | With safety function Safely Limited Speed (SLS) | True |
With safety function Safe brake management (SBC/SBT) | True | With safety function Safe Operating Stop (SOS) | False |
With safety function Safe Position (SP) | False | With safety function Safe programmable logic | False |
With safety function Safe Speed Monitor (SSM) | False | With safety function Safe Stop 1 (SS1) | True |
With sft fct Safe Stop 2 (SS2) | False | With safety function Safe torque off (STO) | True |
With safety function Safely Limited Position (SLP) | False | With safety function Safe Direction (SDI) | False |
Protection type | Thermal protection motor<br />Safe torque off motor<br />Motor phase loss motor<br />Thermal protection drive<br />Safe torque off drive<br />Overheating drive<br />Overcurrent drive<br />Output overcurrent between motor phase and earth drive<br />Output overcurrent between motor phases drive<br />Short-circuit between motor phase and earth drive<br />Short-circuit between motor phases drive<br />Motor phase loss drive<br />DC Bus overvoltage drive<br />Line supply overvoltage drive<br />Line supply undervoltage drive<br />Input supply loss drive<br />Exceeding limit speed drive<br />Break on the control circuit drive | Width | 8.4 in (213.0 mm) |
Height | 26.0 in (660.0 mm) | Depth | 10.3 in (262.0 mm) |
Net Weight | 62.6 lb(US) (28.4 kg) | Continuous output current | 88 A 4 kHz normal duty<br />74.5 A 4 kHz heavy duty |
Operating altitude | <= 4800 m with current derating above 1000m | Operating position | Vertical +/- 10 degree |
Product Certifications | UL<br />CSA<br />TÜV<br />EAC<br />CTick | marking | CE |
Standards | IEC 61800-3<br />IEC 61800-5-1<br />IEC 60721-3<br />IEC 61508<br />IEC 13849-1<br />UL 618000-5-1<br />UL 508C<br />IEC 61000-3-12 | Maximum THDI | <48 % full load IEC 61000-3-12<br /> <48 % 80 % load IEC 61000-3-12 |
Assembly style | With heat sink | Electromagnetic compatibility | Electrostatic discharge immunity test level 3 IEC 61000-4-2<br />Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3<br />Electrical fast transient/burst immunity test level 4 IEC 61000-4-4<br />1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5<br />Conducted radio-frequency immunity test level 3 IEC 61000-4-6 |
Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3<br />Class 3S3 according to IEC 60721-3-3 | Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz | Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
Permitted relative humidity (during operation) | Class 3K5 according to EN 60721-3 | Volume of cooling air | 63402.4 Gal/hr(US) (240.0 m3/h) |
Type of cooling | Forced convection | Overvoltage category | Class III |
Regulation loop | Adjustable PID regulator | Noise level | 63.5 dB |
Ambient air transport temperature | -40…158 °F (-40…70 °C) | Ambient air temperature for operation | 5…122 °F (-15…50 °C) without derating vertical position)<br />122…140 °F (50…60 °C) with derating factor vertical position) |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Isolation | Between power and control terminals |
Specifications may be subject to change without notice
