Product Model

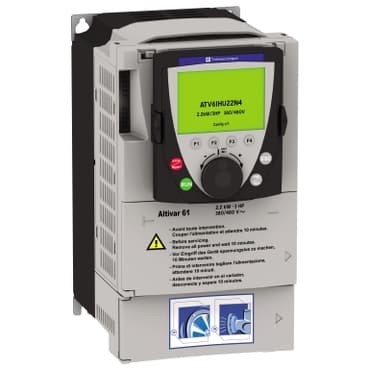

ATV61H075N4T1
Selling Points
- 1The ATV61H075N4T1 AC drive offers precise control over motor operation with features like flux vector control without sensors and adjustable switching frequency.
- 2Supports multiple communication protocols including CANopen, BACnet, CC-Link, DeviceNet, EtherNet/IP, and more for seamless integration with various automation networks.
- 3Ensures reliable operation with a maximum prospective line Isc of 5 kA for 3 phases and a maximum transient current of 2.7A for 60 seconds.
- 4Suitable for pumping systems in water treatment plants, HVAC systems in commercial buildings, and ventilation systems in industrial facilities.
- 5Designed with a heat sink for easy assembly and integration into existing machinery setups, enhancing overall efficiency and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Asynchronous motor control profile | Variable torque standard | Device short name | ATV61 |
Range of Product | Altivar 61 | Line Rated Current | 2.3 A |
Cable entry | Type 1 conduit entry outdoor | communication port protocol | Modbus<br />CANopen |
Input voltage | 400/480 V AC | Keypad Type | LCD keypad |
Maximum Horse Power Rating | 1 hp | Motor power kW | 0.75 kW |
Phase | 3 phase output<br />1 phase input | EMC filter | Class A EMC filter integrated |
IP Degree of Protection | IP20 | NEMA Degree of Protection | No enclosure rating (open device) |
Protective treatment | None |
Specifications may be subject to change without notice
