Product Model

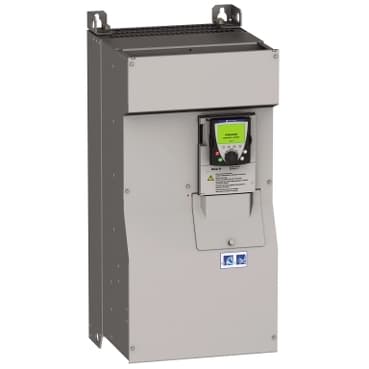

ATV61HC13N4T1
Selling Points
- 1Precise Motor Control: The ATV61HC13N4 AC Drive features flux vector control for asynchronous motors and vector control for synchronous motors, ensuring precise and efficient motor operation.
- 2Energy-Saving Capabilities: With a voltage/frequency ratio control, this drive offers energy-saving options and precise control over motor operation, making it ideal for various industrial processes.
- 3Versatile Communication Options: The drive supports multiple communication protocols including Modbus, BACnet, CC-Link, and more, enabling seamless integration into different industrial networks.
- 4Integrated EMC Filter: The Class C2 EMC filter ensures compliance with stringent electromagnetic compatibility standards, minimizing interference and ensuring reliable operation.
- 5High Power Rating: The drive has a motor power rating of 132 kW (200 hp) at 380-480 V, making it suitable for driving a wide range of industrial machinery and equipment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Asynchronous motor control profile | Variable torque standard | Device short name | ATV61 |
Range of Product | Altivar 61 | Line Rated Current | 259 A |
Cable entry | Type 1 conduit entry outdoor | communication port protocol | Modbus<br />CANopen |
Impregnation material | Conformal coated | Input voltage | 400/480 V AC |
Keypad Type | LCD keypad | Maximum Horse Power Rating | 200 hp |
Motor power kW | 130 kW | Phase | 3 phase output<br />1 phase input |
EMC filter | Class A EMC filter integrated | IP Degree of Protection | IP20 |
NEMA Degree of Protection | No enclosure rating (open device) |
Specifications may be subject to change without notice
