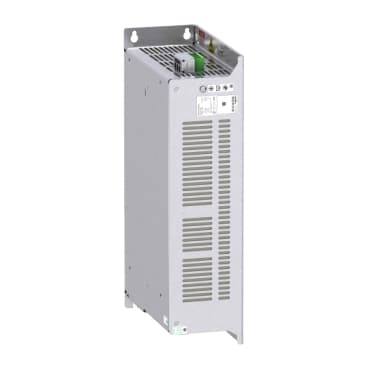

Product Model
ATVRU75N4
Selling Points
- 1The ATVRU75N4 offers real-time monitoring and control capabilities for efficient energy management.
- 2This module ensures low harmonic distortion (THDi < 48% at 80% load), reducing energy consumption and improving grid stability.
- 3The module integrates seamlessly with Ethernet for easy data transmission and process control.
- 4Designed to regenerate energy back into the grid, reducing waste and improving overall efficiency.
- 5The ATVRU75N4 features a compact, modular design for easy installation and maintenance in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Altivar | Range Compatibility | Altivar Machine ATV340<br />Altivar Process ATV900<br />Altivar Machine ATV320 |
Product or Component Type | Power module | Device Application | Energy regeneration |
[Us] rated supply voltage | 380...500 V - 15...10 % | [Ue] rated operational voltage | 456...778 V DC |
Kw Rating | 6.8 kW | Network Frequency | 45...65 Hz |
Phase | 3 phase | Fixing Mode | By screws |
Maximum voltage drop at rated load | 3 % | Electrical connection | Control removable screw terminal block 0.5...1.5 mm², AWG 20...AWG 16 bottom)<br />Power supply removable screw terminal block 2.5...4 mm², AWG 12...AWG 10 top)<br />DC bus removable screw terminal block 2.5...4 mm², AWG 12...AWG 10 bottom) |
Input current | 16.5 A 380 V AC voltage inputs continuous)<br />14.5 A 500 V AC voltage inputs continuous)<br />22.9 A 380 V AC voltage inputs transient for 60 s)<br />19.1 A 500 V AC voltage inputs transient for 60 s) | Input power | 6.8 kW 380...500 V AC voltage inputs continuous)<br />10.2 kW 380...500 V AC voltage inputs transient for 60 s) |
Maximum DC bus voltage | 300...880 V DC | Output Current | 13.4 A 380 V AC continuous)<br />11.9 A 500 V AC continuous)<br />18.4 A 380 V AC transient for 60 s)<br />15.4 A 500 V AC transient for 60 s) |
Width | 3.1 in (80 mm) | Height | 13.3 in (337 mm) |
Depth | 6.9 in (175 mm) | Net Weight | 13.2 lb(US) (6 kg) |
Standards | IEC 61800-5-1<br />IEC 61800-3 | Product Certifications | cUL |
Ambient air temperature for operation | 14…122 °F (-10…50 °C) without derating<br />122…140 °F (50…60 °C) with derating factor | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Operating altitude | <= 3280.84 ft (1000 m) without derating<br />3280.84...9842.52 ft (1000...3000 m) with power derating 1 % per 100 m | Operating position | Vertical or horizontal position |
Type of cooling | Fan | Environmental characteristic | Chemical pollution resistance class 3C3 IEC 60721-3-3<br />Dust pollution resistance class 3S2 IEC 60721-3-3 |
Pollution degree | 2 IEC 61800-5-1 |
Specifications may be subject to change without notice
