Product Model

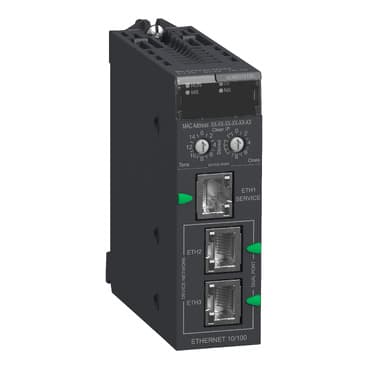

BMECRA31210C
Selling Points
- 1Built to withstand harsh environments with a protective coating on its circuit board.
- 2Measuring 32 mm wide, 100 mm high, and 87.5 mm deep for easy integration.
- 3Supports EtherNet/IP for reliable device network communication.
- 4Compatible with Modicon X80 and M580 Programmable Automation Controllers (PAC).
- 5CE, Merchant Navy, GOST, C-Tick, and more for global industrial use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Range Compatibility | Modicon M580 |
Product or Component Type | I/O expansion module | Device Application | X80 Ethernet RIO drop adaptor |
Product Specific Application | For remote I/O modules | Bus type | Bus X across the remote backplane<br />Ethernet across the remote backplane |
Number of port | 3 | Integrated connection type | 1 port service or distributed equipment<br />2 port Ethernet RIO Network (RSTP) |
Communication Network Type | IPv4 (internet protocol) | communication port protocol | EtherNet/IP |
Communication Service | Ethernet/IP adapter<br />RSTP (Ring topology support)<br />Ethernet RIO network<br />Quality of Service (QoS)<br />CIP Explicit messaging (server)<br />Modbus TCP server for module diagnostics<br />DHCP client<br />TFTP client<br />FTP client<br />FDR client<br />NTP client<br />SNTP client<br />SNMP agent | Cybersecurity | Enable/disable communication ports<br />Syslog protocol support |
Connector Type | 3 RJ45 | Exchange mode | Half duplex, full duplex, autonegotiation, auto MDIX |
Transmission Rate | 10/100 Mbit/s | Port Ethernet | 10/100BASE-TX |
Function Available | CCOTF (configuration change on the fly)<br />Input data is collected and published to the remote I/O head adaptor<br />Output modules are updated with the data received from remote I/O head adaptor<br />Diagnostics for remote I/O devices (Device DDT)<br />Port mirroring<br />System time stamping<br />Non-interfering type 1<br />I/O extension rack | Data recording | 10 ms time stamps |
Topology | Ring | Local signalling | for module active (RUN) 1 LED (green)<br /> for module error (ERR) 1 LED (red)<br /> for module status (Mod Status) 1 LED (green/red)<br /> for network communication status (Net Status) 1 LED (green/red)<br /> for Ethernet link diagnostics (STS) 1 LED (green) |
Current Consumption | 1800 mA | Input voltage | 3.3 V DC |
Product compatibility | 0…1024 discrete channel<br />0…256 analog channel<br /> counter module<br /> time-stamping module<br /> SSI encoder interface module<br /> motion control module<br /> frequency input module<br /> AS-Interface module<br /> serial link module<br /> fiber converter modules<br /> HART module<br /> weighing module<br /> CANopen master module (standalone CPU only)<br /> PROFIBUS module (standalone CPU only)<br /> Ethernet switch module | Module format | Standard |
Net Weight | 0.496 lb(US) (0.225 kg) | Maximum altitude transport | 9842.5 ft (3000 m) |
Relative Humidity | 95 % without condensation | Fixing Mode | By screws |
Mounting Mode | Rack-mounted | Width | 1.3 in (32 mm) |
Height | 3.9 in (100 mm) | Depth | 3.4 in (87.5 mm) |
Protective treatment | Conformal coating | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive |
Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22<br />Hazardous location class 1, division 2 | Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0<br />UL 121201<br />CSA C22.2 No 213 |
Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3 | IP Degree of Protection | IP20 |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Operating altitude | <= 6561.68 ft (2000 m) |
Specifications may be subject to change without notice
