Product Model

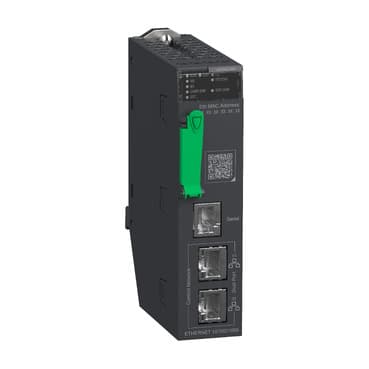

BMENOR2200H
Selling Points
- 1Robust Communication Protocols: Supports IEC 60870-5-101/104 and DNP3 for seamless telemetry.
- 2Advanced Cybersecurity: Includes IPSec role-based access control for secure communication.
- 3High Reliability: Designed for severe environments with IP20 protection and operating in -25°C to 70°C.
- 4Versatile Connectivity: Equipped with 1 Ethernet port, 1 RS232 port, and 1 RS485 port for diverse applications.
- 5Green Premium Certification: Compliant with the latest environmental regulations, ensuring low-CO2 and circular products.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M580 | Product or Component Type | Communication module |
Device Application | Remote monitoring and telecontrol application | Product compatibility | Modicon M580 standalone CPU (BMEP58…..)<br />Modicon M580 redundant CPU (BMEH58…..)<br />Modicon M580 safety CPU (non interfering type 1) (BMEP582…..)<br />Modicon M580 safety redundant CPU (non interfering type 1) (BMEH582…..)<br />Modicon X80 rack with Ethernet backplane (BMEXBP…..) |
Mounting Location | Main rack | Backplane slot location | Ethernet + X-bus Slot |
Slot occupied by module | 1 | Maximum number of modules per rack | 4 |
Supply | Internal power supply via rack | Integrated connection type | 1 RS232 RJ45 115200 bit/s 8 wires<br />1 RS485 RJ45 115200 bit/s 1 twisted shielded pair<br />2 Ethernet RJ45 10/100/1000 Mbit/s double shielded twisted pair |
Memory description | Support flash SD memory card (BMXRMS004GPF) 4 GB | Communication service | DNP3 NET server SAv2/SAv5 with pre-shared key<br />DNP3 NET client SAv2/SAv5 with pre-shared key<br />IEC 60870-5-101 server/client<br />IEC 60870-5-104 server/client<br />Modbus TCP messaging<br />Web server (HTTPS), HTML5<br />FDR client<br />SNTP client<br />SNMP agent<br />Time stamped events management<br />Automatic events backup on power loss<br />Transparent events routing from remote servers to SCADA<br />Data logging service<br />IEC60870-5-104 channel redundancy<br />DNP3 NET multiple session |
Cybersecurity | Role-based access control<br />System hardening<br />Secure communication (HTTPS)<br />Achilles certified<br />Syslog protocol support<br />Transport layer security for RTU protocols<br />SNMP logging<br />Certificate based authentication | Current consumption | 137 mA 24 V DC |
Local signalling | for cyber security (SEC) 1 LED (green/red)<br /> for serial communication (SER COM) 1 LED (yellow)<br /> for download in progress (DL) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for memory card fault (CARD ERR) 1 LED (red)<br /> for processor running (RUN) 1 LED (green)<br /> for status of control ethernet (NS) 1 LED (green/red)<br /> for RTU connection status (RTUCNX) 1 LED (green)<br /> for status of backplane ethernet (BS) 1 LED (green/red) | Width | 1.3 in (32 mm) |
Height | 5.2 in (131 mm) | Length | 3.4 in (86 mm) |
Net Weight | 0.90 lb(US) (0.41 kg) | IP Degree of Protection | IP20 |
Protective treatment | Conformal coating | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000 m...5000 m with derating factor |
Vibration resistance | 3 gn | Shock resistance | 30 gn |
marking | CE | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22<br />UKCA type 1<br />UKCA |
Standards | IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />IEC 61000-6-5, interface type 1 and type 2<br />IEC 61850-3, location G<br />IEC 60079-0 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive |
Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 |
Specifications may be subject to change without notice
