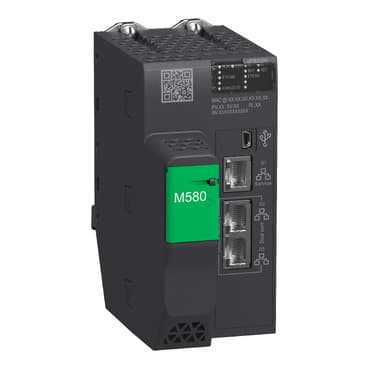

Product Model
BMEP582020H
Selling Points
- 1High I/O Capacity: Supports up to 2048 I/O points for extensive control and monitoring.
- 2Robust Communication: Equipped with USB Type Mini B and Ethernet TCP/IP service ports for seamless connectivity.
- 3Severe Environment Ready: Designed to operate in harsh conditions with an operating temperature range of 0 to 60°C.
- 4Expandable Memory: Offers 4 GB of data storage expandable flash memory for enhanced performance.
- 52-Year Warranty: Includes a comprehensive 2-year warranty for peace of mind and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M580 | Product or Component Type | Processor module |
Product Specific Application | For severe environments | Number of racks | 4 |
Local I/O processor capacity (discrete) | 2048 I/O | Local I/O processor capacity (analog) | 512 I/O |
Number of application specific channel (local rack) | 72 | Application specific I/O | Accurate time stamping<br />Counter<br />SSI encoder<br />HART<br />Serial link<br />Motion control |
Checks | Process control | Control channels | Programmable loops |
Integrated connection type | 1 Ethernet TCP/IP service port<br />2 Ethernet TCP/IP device network<br />USB type mini B | Number of distributed equipment | 128 |
Communication module processor capacity | 2 Ethernet communication module<br />4 AS-Interface module | Communication Service | DIO scanner |
Memory description | Expandable flash, 4 GB data storage<br />Integrated RAM, 10 kB system memory<br />Integrated RAM, 8 MB program<br />Integrated RAM, 768 kB data | Application structure | 2 auxiliary tasks<br />64 event tasks<br />1 cyclic/periodic master task<br />1 periodic fast task |
Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />40 Kinst/ms 100 % Boolean | Current consumption | 270 mA 24 V DC |
MTBF reliability | 775000 H | marking | CE |
Vibration resistance | 3 gn | Shock resistance | 30 gn |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive |
Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 | Standards | IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />IEC 60079-0 |
Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 | Protective treatment | Conformal coating |
Supply | Internal power supply via rack | Status LED | 1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Green) download in progress (DL)<br />1 LED (Red) memory card or CPU flash fault (BACKUP)<br />1 LED (green/red) ETH MS (Ethernet port configuration status)<br />1 LED (green/red) Eth NS (Ethernet network status) |
Net Weight | 1.872 lb(US) (0.849 kg) |
