Product Model

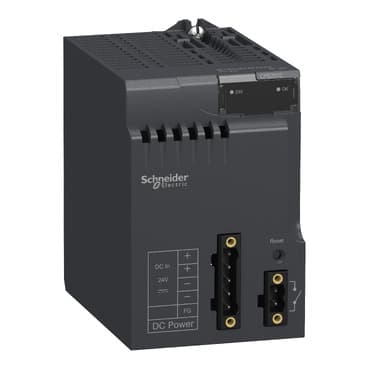

BMXCPS2010
Selling Points
- 1Wide Voltage Range: Operates within 18 to 31.2 V DC, ensuring adaptability to various power conditions.
- 2Advanced Protection: Equipped with internal fuse, overload, overvoltage, and short-circuit protections for the secondary circuit.
- 3Efficient Power Supply: Provides 16.8 W for 24 V DC I/O module power supply and processor, and 8.3 W for 3.3 V DC I/O module logic power supply.
- 4Durable Design: Resistant to vibrations up to 3 gn and shocks up to 30 gn, with an IP20 rating for indoor use.
- 5Easy Integration: Compact design fits easily into most rack systems, ensuring seamless integration with Modicon X80 devices.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Power supply module |
backplane compatibility | Not compatible with BMEXBP..02 | Primary Voltage | 24 V isolated |
Supply circuit type | DC | Secondary power | 16.8 W 24 V DC I/O module power supply and processor<br />8.3 W 3.3 V DC I/O module logic power supply |
Primary voltage limit | 18...31.2 V | Input current | 1 A 24 V |
Inrush current | 30 A 24 V | I²t on activation | 0.6 A².s 24 V |
It on activation | 0.15 A.s 24 V | MTBF reliability | 4886000 H |
Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit, 24 V sensor power supply<br />Overvoltage protection secondary circuit, 24 V sensor power supply<br />Short-circuit protection secondary circuit, 24 V sensor power supply | Current at secondary voltage | 0.7 A 24 V DC I/O module power supply and processor<br />2.5 A 3.3 V DC I/O module logic power supply |
Maximum power dissipation in W | 8.5 W | Status LED | 1 LED (Green) rack voltage OK |
Control Type | RESET push-button cold restart | Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth, 24 V DC input sensor |
Maximum cable distance between devices | 65.6 ft (20 m) power supply cable copper 0.002 in² (1.5 mm²)<br />98.4 ft (30 m) power supply cable copper 0.004 in² (2.5 mm²) | Insulation resistance | >= 10 MOhm primary/ground<br />>= 10 MOhm primary/secondary |
Net Weight | 0.64 lb(US) (0.29 kg) | Immunity to microbreaks | 1 ms |
Dielectric strength | 1500 V primary/ground<br />1500 V primary/secondary | Vibration resistance | 3 gn |
Shock resistance | 30 gn | IP Degree of Protection | IP20 |
Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
Protective treatment | TC | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
