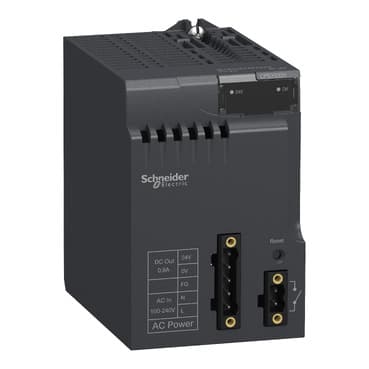

Product Model
BMXCPS3500H
Selling Points
- 1The BMXCPS3500H provides a reliable 24 VDC output with input ranges from 115 to 240 VAC.
- 2Suitable for various industries including water, wastewater, mining, and more.
- 3Robust and compact design ensures efficient use of space in industrial settings.
- 4Allows for easy replacement without disrupting system operation.
- 5Includes detailed user manuals, service manuals, and technical specifications for easy integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Power supply module |
backplane compatibility | Not compatible with BMEXBP..02 | Product Specific Application | For severe environments |
Primary Voltage | 100...240 V | Supply circuit type | AC |
Secondary power | 15 W 3.3 V DC 32…140 °F (0…60 °C) I/O module logic power supply<br />31.2 W 24 V DC 32…140 °F (0…60 °C) I/O module power supply and processor<br />11.3 W 3.3 V DC -13…158 °F (-25…70 °C) I/O module logic power supply<br />23.4 W 24 V DC -13…158 °F (-25…70 °C) I/O module power supply and processor<br />21.6 W 24 V DC 32…140 °F (0…60 °C) sensor power supply<br />16.2 W 24 V DC -13…158 °F (-25…70 °C) sensor power supply | Primary voltage limit | 85...264 V |
Network Frequency | 50/60 Hz | Network frequency limits | 47…63 Hz |
Apparent power | 0.12 kVA | Input current | 0.52 A 240 V<br />1.04 A 115 V |
Inrush current | 30 A 120 V<br />60 A 240 V | I²t on activation | 1 A².s 120 V<br />3 A².s 240 V |
It on activation | 0.05 A.s 120 V<br />0.07 A.s 240 V | MTBF reliability | 4300000 H |
Protection type | Internal fuse not accessible primary circuit<br />Overload protection secondary circuit<br />Overvoltage protection secondary circuit<br />Short-circuit protection secondary circuit | Current at secondary voltage | 0.9 A 24 V DC sensor power supply<br />1.3 A 24 V DC I/O module power supply and processor<br />4.5 A 3.3 V DC I/O module logic power supply |
Maximum power dissipation in W | 8.5 W | Status LED | 1 LED (Green) rack voltage OK<br />1 LED (Green) sensor voltage |
Control Type | RESET push-button cold restart | Electrical connection | 1 connector 2 alarm relay<br />1 connector 5 line supply, protective earth, 24 V DC input sensor |
Insulation resistance | >= 100 MOhm primary/ground<br />>= 100 MOhm primary/secondary | Net Weight | 0.79 lb(US) (0.36 kg) |
Immunity to microbreaks | 1 ms | Dielectric strength | 1500 V primary/secondary I/O module logic power supply<br />1500 V primary/secondary I/O module power supply and processor<br />2300 V primary/secondary sensor power supply<br />1500 V primary/ground<br />500 V 24 V sensor output/ground |
Vibration resistance | 3 gn | Shock resistance | 30 gn |
IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy | Standards | IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G |
Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
Protective treatment | Conformal coating | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
