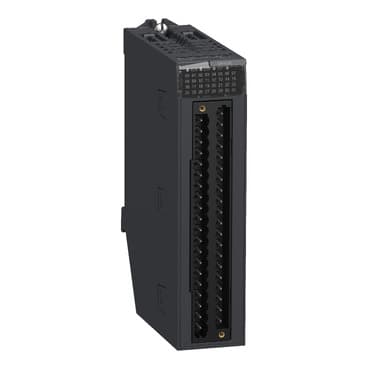

BMXDAI16142
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon X80
Product or Component Type
Discrete I/O module
Discrete input number
16
Discrete input type
Isolated
input type
Capacitive
Discrete input voltage
100...120 V AC
Discrete input current
11.9 mA
Input compatibility
2-wire proximity sensor IEC 60947-5-2<br />2-wire proximity sensor IEC 61131-2 Type 1
Network Frequency
60 Hz
Network frequency limits
47…63 Hz
Sensor power supply
85...132 V
Current state 1 guaranteed
>= 4 mA
Current state 0 guaranteed
<= 3 mA
input impedance
11...13.4 kOhm
Insulation resistance
> 10 MOhm 500 V DC
Power dissipation in W
4.3 W
AC activation response time
21 ms
AC deactivation response time
35 ms
Typical current consumption
76 mA 3.3 V DC
MTBF reliability
3700000 H
Protection type
1 external fuse per group of channel 0.25 A fast blow
Voltage detection threshold
< 40 V AC sensor fault<br />> 85 V AC sensor OK
Status LED
1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O
Net Weight
0.346 lb(US) (0.157 kg)
IP Degree of Protection
IP20
Dielectric strength
1780 V AC 60 Hz 1 min
Vibration resistance
3 gn
Shock resistance
30 gn
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Relative humidity
0…95 % 32…140 °F (0…60 °C) without condensation
Operating altitude
0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor

Specifications may be subject to change without notice
