Product Model

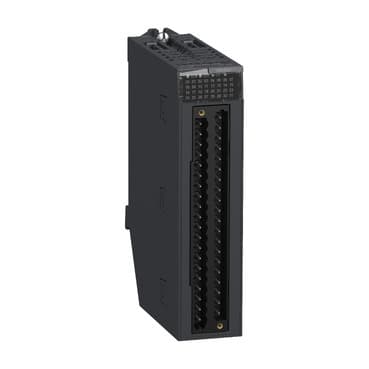

BMXDAO1615H
Selling Points
- 1The BMXDAO1615H features 16 isolated triac outputs, ensuring reliable and safe operation in harsh environments.
- 2Compatible with 24 to 240V AC, this module offers flexibility in various industrial applications.
- 3With an MTBF of 500,000 hours, this module is built for long-term reliability in demanding conditions.
- 4Designed with IP20 protection, it is resistant to dust and non-water ingress, making it suitable for severe environments.
- 5Equipped with conformal coating for enhanced protection against environmental factors like moisture and chemicals.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Discrete output module |
Product Specific Application | For severe environments | Discrete output number | 16 EN/IEC 61131-2 |
Discrete output type | Triac | Discrete output voltage | 24...240 V 20...264 V AC |
Discrete output current | 1.2 A | Network Frequency | 50/60 Hz |
Network frequency limits | 47…63 Hz | Sensor power supply | 20...264 V |
Current per channel | 1.2 A 140 °F (60 °C)<br />0.6 A 158 °F (70 °C) | Maximum current per module | 4 A 140 °F (60 °C)<br />2 A 158 °F (70 °C) |
Maximum leakage current | 1 mA at state 0 24 V<br />1 mA at state 0 48 V<br />2 mA at state 0 115 V<br />2.5 mA at state 0 240 V | Maximum voltage drop | <1.55 V at state 1 |
Insulation resistance | > 10 MOhm 500 V DC | Power dissipation in W | 1.45 W |
Response time on output | <= 10 ms resistive activation<br /><= 10 ms resistive deactivation | Typical current consumption | 61 mA 3.3 V DC<br />50 mA 24 V DC |
MTBF reliability | 500000 H | Protection type | 1 external fuse 4 A fast blow |
Output overload protection | With varistor | Inrush current | 30 A |
Maximum current per output common | 4 A | Output current limits | 0.005…10 A |
Status LED | 1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O | Net Weight | 0.582 lb(US) (0.264 kg) |
IP Degree of Protection | IP20 | Environmental characteristic | Gas resistant class Gx<br />Gas resistant class 3C4<br />Dust resistant class 3S4<br />Sand resistant class 3S4<br />Salt resistant level 2<br />Mold growth resistant class 3B2 |
Dielectric strength | 3000 V AC 50/60 Hz 1 min | Vibration resistance | 3 gn |
Shock resistance | 30 gn | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Relative humidity | 0…95 % -13…158 °F (-25…70 °C) without condensation |
Protective treatment | Conformal coating | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
