Product Model

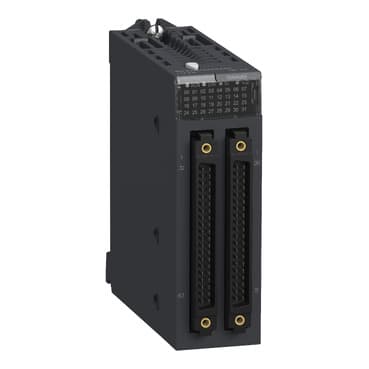

BMXDDI6402KH
Selling Points
- 1Robust Design: Built for severe environments with certifications for hazardous locations and ATEX/IECEx zones.
- 2High Input Capacity: Features 64 discrete inputs with isolated current sink logic positive.
- 3Compact and Reliable: Compact design with high reliability, suitable for various industrial applications.
- 4Wide Environmental Tolerance: Operates in a wide temperature range (-25°C to 70°C) and high humidity conditions.
- 5Long MTBF: Offers a high Mean Time Between Failures (MTBF) of 510,000 hours for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | Product or Component Type | Discrete input module |
Product Specific Application | For severe environments | Discrete input number | 64 |
Discrete input type | Isolated | input type | Current sink (logic positive) |
Discrete input voltage | 24 V DC positive | Discrete input current | 0.6 mA |
Sensor power supply | 19...30 V | input impedance | 40000 Ohm |
Insulation resistance | > 10 MOhm 500 V DC | Power dissipation in W | 4.3 W |
DC typical response time | 4 ms | DC maximum response time | 7 ms |
Paralleling of inputs | No | Typical current consumption | 160 mA 3.3 V DC |
MTBF reliability | 510000 H | Protection type | 1 external fuse per group of channel 0.5 A fast blow<br /> without reverse polarity protection |
Voltage detection threshold | < 14 V DC sensor fault<br />> 18 V DC sensor OK | Status LED | 1 LED (Green) +32 channels indicator<br />1 LED (Green) module operating (RUN)<br />1 LED per channel (Green) channel diagnostic<br />1 LED (Red) module error (ERR)<br />1 LED (Red) module I/O |
Net Weight | 0.320 lb(US) (0.145 kg) | IP Degree of Protection | IP20 |
Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Environmental characteristic | Gas resistant class Gx<br />Gas resistant class 3C4<br />Dust resistant class 3S4<br />Sand resistant class 3S4<br />Salt resistant level 2<br />Mold growth resistant class 3B2<br />Fungal spore resistant class 3B2 |
Dielectric strength | 1500 V AC 50/60 Hz 1 minute, primary/secondary<br />500 V DC 1 minute, between group of channels | Vibration resistance | 3 gn |
Shock resistance | 30 gn | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Relative humidity | 5…95 % -13…158 °F (-25…70 °C) without condensation |
Protective treatment | Conformal coating | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
Specifications may be subject to change without notice
