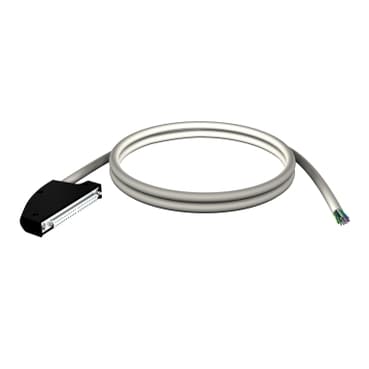

Product Model
BMXFCW501
Selling Points
- 1Suitable for Modicon X80 I/O Platform Discrete I/O Module
- 21-Cable with 5m Cable Length
- 3Color-coded flying leads conforming to DIN 47100
- 420-Wire Preformed Cord Set
- 5Compliant with EU RoHS Directive and Mercury-Free
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | accessory / separate part type | Preformed cordset |
Accessory / separate part designation | Preformed cordset with one end with flying leads | Accessory / separate part destination | For I/O module with 40-way connectors |
Number of cables | 1 | Electrical connection | 1 connector 40 ways<br />1 end with color-coded flying leads DIN 47100 |
Cable length | 16.4 ft (5 m) | Total number of wires | 20 |
Wire section | 0.0005 in² (0.324 mm²) | AWG Gauge | AWG 22 |
Net Weight | 3.02 lb(US) (1.37 kg) |
Specifications may be subject to change without notice
