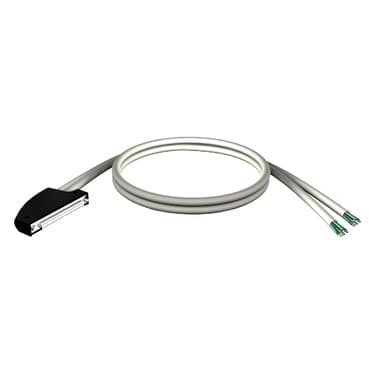

Product Model
BMXFCW503
Selling Points
- 140-way terminal connectivity for high-density digital I/O modules.
- 2Two ends with flying leads for easy connection.
- 35m length for flexible installation.
- 4Compliant with DIN 47100 for color-coded cables.
- 5RoHS compliant for sustainable and environmentally friendly use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon X80 | accessory / separate part type | Preformed cordset |
Accessory / separate part designation | Preformed cordset with one end with flying leads | Accessory / separate part destination | For I/O module with 40-way connectors |
Number of cables | 2 | Electrical connection | 1 connector 40 ways<br />2 ends with color-coded flying leads DIN 47100 |
Cable length | 16.4 ft (5 m) | Total number of wires | 40 |
Wire section | 0.0005 in² (0.324 mm²) | AWG Gauge | AWG 22 |
Relative impedance | 10 MOhm <= 50 V<br />100 MOhm 50...250 V | Net Weight | 3.28 lb(US) (1.49 kg) |
Standards | CSA C22.2 No 142<br />EN/IEC 61131-2<br />UL 508 |
Specifications may be subject to change without notice
