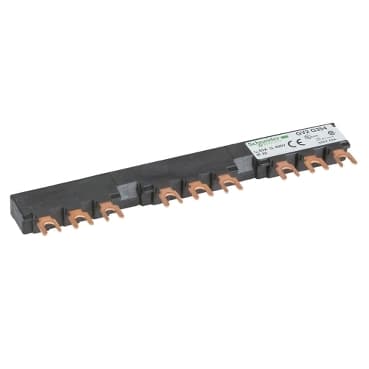

Product Model
GV2G354
Selling Points
- 1High-Quality Electrical Solution: Designed for reliability and efficiency in 3-phase applications.
- 23 Tap-Offs and 54 mm Pitch: Offers precise control and flexibility with its 3 tap-offs and 54 mm pitch.
- 3Terminal Mount Screw Clamp Connection: Easy installation with terminal mount screw clamp connection.
- 4Suitable for TeSys GV2, D, K, U: Compatible with TeSys GV2, D, K, U Manual Starters and Controllers.
- 5Dimensions: 6.38 in L, 3 Poles, 63 A: Compact design with 3 poles and 63 A rating for various electrical needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range | Linergy | Product name | FT |
Device short name | GV2G | Product or Component Type | Comb busbar |
accessory / separate part category | Connection accessory | Poles description | 3P |
Range compatibility | TeSys Deca<br />TeSys GV2<br />TeSys K<br />TeSys U | Number of tap-offs | 3 |
[Ith] conventional free air thermal current | 63 A | Connection pitch | 2.1 in (54 mm) |
Mounting Location | On terminal | [Ui] Rated Insulation Voltage | 690 V |
Length | 6.0 in (152 mm) | Net Weight | 0.13 lb(US) (0.06 kg) |
Specifications may be subject to change without notice
