schneiderHMI (Terminals and Industrial PC)
Product Model

HMIDT65X

Manufacturer

schneider

Category

HMI (Terminals and Industrial PC)

Product ID

29930

In Stock
Last updated: 2025/4/28
View Specifications

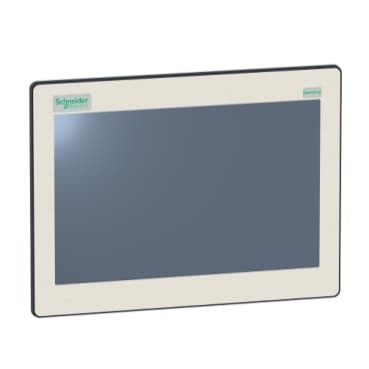

schneider HMIDT65X

Selling Points

  • 1Built to withstand harsh environments with high water protection (IP66) and resistance to chemical gases.
  • 2Sunlight-readable display with 1000 cd/m² luminance for clear visibility in outdoor conditions.
  • 3Operates from -30°C to +70°C, ensuring reliability in extreme temperatures.
  • 4Dual network ports for seamless integration into Hybrid Process architecture.
  • 5Only 12.5 W power consumption, making it energy-efficient for continuous operation.
Product Details
HMIDT65X
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony GTUX
Product or Component Type
EXtreme touchscreen panel
Terminal type
Touchscreen display
[Us] rated supply voltage
12 V DC power supply
Supply voltage limits
10.8…28.8 V
Power consumption in W
12.5 W
Inrush current
30 A
Touchscreen resolution
1024 x 1024
Pixel resolution
1280 x 800
Display size
12.1 inch
Aspect ratio
4:3
Display type
Colour TFT LCD
Display Resolution
1280 x 800 pixels WVGA
Display colour
262144 colors
Luminance
92.9 fc (1000 cd/m²)
Touch panel
Single touch analogue resistive
Type of cooling
Natural convection
cut-out dimensions
295 (+ 1/- 0) x 217 (+ 1/- 0) mm
Width
12.1 in (308.5 mm)
Height
9.07 in (230.5 mm)
Depth
2.7 in (68 mm)
Net Weight
7.05 lb(US) (3.2 kg)
IP degree of protection
IP66f<br /> IP67f<br />Front panel Type 4X
Standards
UL 61010<br /> UL 121201<br /> CSA C22.2 No 213<br /> CSA C22.2 No 61010-1<br /> IEC 61132-2
Product Certifications
KC<br />CE<br />RCM<br />EAC<br />ATEX zone 2/22<br />IEC-Ex<br />UL<br />CSA<br />UKCA<br />UKEX
Ambient air temperature for operation
-22…158 °F (-30…70 °C) IEC 61131-2
Ambient air temperature for storage
-22…158 °F (-30…70 °C)
Pollution degree
2
Environmental characteristic
Corrosive gas free<br />UV resistant
Relative Humidity
10…90 % non-condensing
Operating altitude
6561.68 ft (2000 m)
Vibration resistance
7 mm constant amplitude 5…9 Hz) IEC 61131-2<br />19.6 m/s² 9…150 Hz) IEC 61131-2
Shock resistance
392 m/s²IEC 61131-2
Electromagnetic compatibility
Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

Specifications may be subject to change without notice
