schneiderHMI (Terminals and Industrial PC)
Product Model

HMIG3U

Manufacturer

schneider

Category

HMI (Terminals and Industrial PC)

Product ID

29945

In Stock
Last updated: 2025/4/28
View Specifications

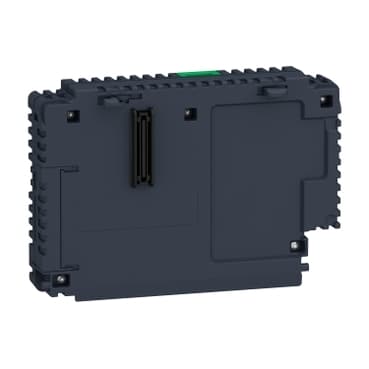

schneider HMIG3U

Selling Points

  • 1High-performance RISC CPU for low latency display and automation.
  • 2256 MB RAM and 512 KB NVRAM backup memory for reliable data storage.
  • 32 SD card slots, including a 1 GB pre-installed card for expanded data storage.
  • 4Multiple connectivity options: 2 host + 1 mini-B USB ports, 1 RS232C/RS422/RS485 port, 1 RS485 port, and 1 Ethernet TCP/IP port.
  • 5Ideal for supervising and controlling complex industrial systems with robust communication protocols like Modbus and Modbus TCP/IP.
Product Details
HMIG3U
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony GTU
Product or Component Type
Base unit
Device short name
Premium Box
Range Compatibility
Harmony GTU
[Us] rated supply voltage
12...24 V DC power supply
Integrated connection type
Ethernet TCP/IP 2 RJ45<br />COM1 serial link RJ45 RS485 110...115200 bit/s<br />COM1 serial link RJ45 RS485 187.5 kbit/s<br />COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s<br />COM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/s<br />Auxiliary port terminal block<br />Expansion unit fieldbus card<br />USB 2.0 port 2 USB type A<br />USB 2.0 port mini B USB
Communication port protocol
Modbus<br />Modbus TCP/IP<br />Uni-Telway
Operating system
Harmony
Software package
Vijeo Designer run time
Processor name
CPU RISC 600 MHz
Data storage equipment
1 GB SD card
Port Ethernet
10BASE-T/100BASE-TX/1000BASE-T
Memory description
256 MB RAM internal 2 x 13 mm board)<br />512 KB NVRAM backup memory
Type of cooling
Natural convection
Width
7.4 in (188 mm)
Height
5.2 in (131 mm)
Depth
1.8 in (45 mm)
Net Weight
2.0 lb(US) (0.9 kg)
Standards
CSA C22.2 No 142<br /> ANSI/ISA 12-12-01<br /> UL 508<br />Class I division 2 CSA C22.2 No 213<br /> IEC 61132-2
Product certifications
CE<br />CULus<br />ATEX<br />IEC-Ex<br />RCM<br />GL<br />KC<br />CUL<br />EAC<br />ABS<br />BV<br />CCS<br />DNV<br />LR<br />RINA<br />UKCA<br />UKEX
Ambient air temperature for operation
32…140 °F (0…60 °C)
Ambient air temperature for storage
-4…140 °F (-20…60 °C)
Pollution degree
2 IEC 61131-2 ed.3
Relative Humidity
10…90 % non-condensing
Operating altitude
6561.68 ft (2000 m)
Vibration resistance
3.5 mm constant amplitude 5…9 Hz) IEC 61131-2<br />9.8 m/s² 9…150 Hz) IEC 61131-2
Electromagnetic compatibility
Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

Specifications may be subject to change without notice
