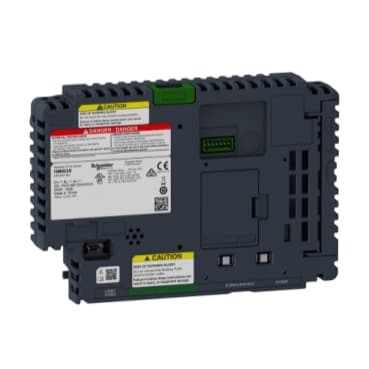

Product Model
HMIG3XFH
Selling Points
- 1Designed to operate in temperatures from -30°C to 70°C and withstand 1 KV fast transients.
- 2Equipped with 256 MB RAM for efficient processing.
- 3Supports Ethernet TCP/IP with 2 RJ45 ports for seamless communication.
- 4Offers full-coated protection against harsh environments.
- 5Meets CE, KC, RCM, EAC, ATEX zone 2/22, IEC-Ex, UL, CSA, UKCA, and UKEX standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony GTUX | Product or Component Type | Base unit |
Device short name | eXtreme Box full coated | [Us] rated supply voltage | 12 V DC power supply |
Power consumption in W | 20.0 W | Integrated connection type | Ethernet TCP/IP 2 RJ45 10 BASE-T/100 BASE-TX/1000 BASE-T<br />COM1 serial link RJ45 RS485 110...115200 bit/s<br />COM1 serial link RJ45 RS485 187.5 kbit/s<br />COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s<br />COM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/s<br />Auxiliary port terminal block<br />Expansion unit fieldbus card<br />USB 2.0 port 2 USB type A<br />USB 2.0 port mini B USB |
communication port protocol | Modbus TCP/IP<br />Modbus serial<br />Uni-Telway | Operating system | Harmony |
Software package | Vijeo Designer run time<br />EcoStruxure Operator Terminal Expert | Processor name | CPU RISC 600 MHz |
Data storage equipment | 1 GB SD card | Memory description | 256 MB RAM internal 2 x 13 mm board) |
Number of slots | 2 slot(s) for SD card | Type of cooling | Natural convection |
Width | 7.4 in (188 mm) | Height | 5.2 in (131 mm) |
Depth | 1.8 in (45 mm) | Net Weight | 2.0 lb(US) (0.9 kg) |
Standards | UL 61010<br /> UL 121201<br /> CSA C22.2 No 213<br /> CSA C22.2 No 61010-1<br /> IEC 61132-2 | Product Certifications | CE<br />KC<br />RCM<br />EAC<br />ATEX zone 2/22<br />IEC-Ex<br />UL<br />CSA<br />UKCA<br />UKEX |
Resistance to fast transients | 1 kV IEC 61000-4-4 signal ports)<br />2 kV IEC 61000-4-4 power ports) | Resistance to electrostatic discharge | 6 kV contact discharge EN/IEC 61000-4-2 level 3<br />8 kV air discharge EN/IEC 61000-4-2 level 3 |
Ambient air temperature for operation | -22…158 °F (-30…70 °C) EN 61131-2 | Ambient air temperature for storage | -22…158 °F (-30…70 °C) |
Pollution degree | 2 EN 61131-2 Ed.3 | Environmental characteristic | 3C3 |
Relative Humidity | 10…90 % non-condensing | Operating altitude | 6561.68 ft (2000 m) |
Vibration resistance | 7 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2<br />19.6 m/s² 9…150 Hz) EN/IEC 61131-2 | Shock resistance | 392 m/s² X, Y, Z directions for 3 times)EN/IEC 61131-2 |
Electromagnetic compatibility | Electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 level 3 |
Specifications may be subject to change without notice
