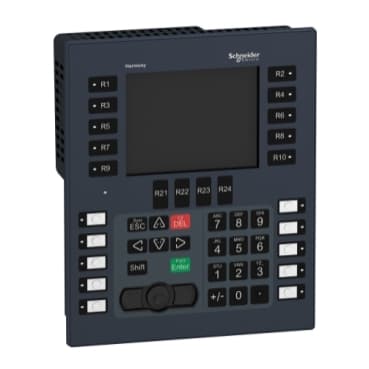

Product Model
HMIGK2310
Selling Points
- 1High-resolution display: 5.7" color TFT LCD with 320 x 240 pixels QVGA resolution.
- 2Versatile communication: Equipped with 10BASE-T/100BASE-TX communication ports.
- 3Powerful operation: 24 VDC, 30 A, 7.7 W power source.
- 4Advanced software compatibility: Compatible with Vijeo Designer software.
- 5Robust memory: 512 kB SRAM and 128 MB Flash EPROM for efficient data storage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony GK | Product or Component Type | Touchscreen panel with keypad |
Display colour | 65536 colours | Display size | 5.7 inch |
Supply | External source | Operating System | Harmony |
Processor name | CPU RISC | Display Type | Backlit colour TFT LCD |
Display Resolution | 320 x 240 pixels QVGA | Touch sensitive zone | 1024 x 1024 |
Touch panel | Analogue | Backlight lifespan | 50000 hours |
Brightness | 16 levels via touch panel | Character font | Korean<br />Taiwanese (traditional Chinese)<br />ASCII (European characters)<br />Japanese (ANK, Kanji)<br />Chinese (simplified Chinese) |
[Us] rated supply voltage | 24 V DC | Supply voltage limits | 19.2…28.8 V |
Inrush current | 30 A | Power consumption in W | 7.7 W |
Number of dynamic function keys symb | 14 with LED | Number of static function keys | 10 with LED and labels |
Number of SERVICE keys | 8 | Number of alphanumeric keys | 12 |
Local signalling | for normal operation or backlighting faulty 1 LED (green or orange) | Number of pages | Limited by internal memory capacity |
Software Type | Configuration software | Software Designation | Vijeo Designer |
Processor frequency | 333 MHz | Memory description | 512 KB SRAM back up of data lithium battery<br />128 MB flash EPROM application memory |
Downloadable protocols | Telemecanique Modicon FIPWAY<br />Telemecanique Modicon Modbus Plus<br />Telemecanique Modicon Modbus TCP<br />Telemecanique Modicon Modbus<br />Mitsubishi Melsec third party protocols<br />Omron Sysmac third party protocols<br />Rockwell Automation Allen-Bradley third party protocols<br />Siemens Simatic third party protocols<br />Telemecanique Modicon Uni-TE | Realtime clock | Built-in |
Memory type | Up to 32 GB SD card RAM<br />Up to 32 GB SDHC card RAM | Integrated connection type | <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s)<br /> USB 2.0 type A master Modicon M340 terminal port communication<br /><= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link<br /> removable screw terminal block power supply<br /> RJ45 Ethernet TCP/IP<br /> USB 2.0 type mini B |
Port Ethernet | 10BASE-T/100BASE-TX | Mounting Mode | Flush mounting |
Fixing Mode | By 10 spring clips | Front material | Aluminium alloy |
Enclosure Material | PPT | marking | CE |
Width | 8.7 in (220.3 mm) | Height | 10.4 in (265 mm) |
Depth | 2.8 in (70 mm) | cut-out dimensions | 209 (+/- 0.4) x 243 (+/- 0.4) mm |
Net Weight | 4.0 lb(US) (1.8 kg) | Immunity to microbreaks | 5 ms |
Standards | UL 61010-2-201<br />IEC 61000-6-2<br />IEC 61131-2<br />ANSI/ISA 12.12.01<br />CSA C22.2 No 213<br />IEC 61000-6-4<br />UBC 1997 (Seismic Zone 4) | Product Certifications | UL Class 1 Division 2 T5<br />KC<br />CSA Class 1 Division 2 T5<br />CSA Class 1 Division 2 T4A<br />EAC<br />RCM<br />cULus<br />UL Class 1 Division 2 T4A<br />UKCA |
Ambient Air Temperature for Operation | 32…131 °F (0…55 °C) | Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
Relative humidity | 10…90 % without condensation | Operating altitude | < 6561.68 ft (2000 m) |
IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) | NEMA degree of protection | NEMA 4X front panel (indoor use) |
Shock resistance | 15 gn 11 ms IEC 60068-2-27 | Vibration resistance | 1 gn 9…150 Hz)IEC 60068-2-6<br />3.5 mm 5…9 Hz)IEC 60068-2-6 |
Electromagnetic compatibility | Resistance to electrostatic discharge - test level: 4 kV level 3 conforming to IEC 61000-4-2<br />Resistance to radiated electromagnetic fields - test level: 10 V/m conforming to IEC 61000-4-3<br />Resistance to fast transient - test level: 2 kV level 3 conforming to IEC 61000-4-4 |
Specifications may be subject to change without notice
