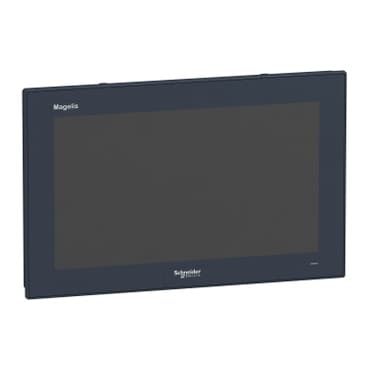

Product Model
HMIPSPC752D1W01
Selling Points
- 1High-Performance Core i5 CPU: Efficient processing for demanding tasks.
- 2Multi-Touch Screen: Projected capacitive technology for precise interactions.
- 3Compact Design: Simple and robust all-in-one hardware for easy integration.
- 4Industrial-Grade Build: IP66 protection and -20°C to 60°C operating temperature range.
- 5Advanced Storage: 128GB SSD with 150,000 hours Mean Time Between Failures (MTBF).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony iPC | Product or Component Type | Multi-touch screen |
Processor Name | Intel Core i3 4010U at 1.7 GHz | Chipset type | Intel QM87 |
Free slots | 1 Internal SATA HDD/SSD<br />1 CFast | Display size | 15" wide multi-touch |
Display colour | 16777216 colors | Luminance | 27.9 fc (300 cd/m²) |
Pixel resolution | 4096 x 4096 | Video controller type | Intel HD Graphics 4400 |
Software package | EcoStruxture secure connect advisor annual subscription cyber security license not included<br />EcoStruxure Operator Terminal Expert run time HMI license not included<br />EcoStruxure Machine SCADA Expert run time HMI/SCADA on configured offer only<br />EcoStruxure augmented operator advisor server augmented operator license not included | Number of points | 5 |
Terminal type | Touchscreen display | Memory type | 8 GB RAM DDR3 internal |
Data storage equipment | 32 GB back side CFast card | Aspect ratio | 16:9 |
Display Type | Colour TFT LCD<br />LED | Display Resolution | 1366 x 768 pixels WXGA |
Backlight lifespan | 50000 hours | View angle horizontal x vertical | 160 x 170° |
Touch panel | Projected capacitive technology (PCT) | Type of cooling | Fanless<br />Passive |
Watchdog timer | 1…255 ms | Number of slots | 1 mini PCI Express full-size |
[Us] rated supply voltage | 24 V DC +/- 20 %<br />100...240 V AC with additional adaptor HMIYPSPMAC1 | Power consumption in W | 18…60 W |
Mechanical robustness | Hardness anti-scratch 7H | Function Available | Operate with water on screen |
Width | 16.5 in (419.7 mm) | Height | 10.6 in (269 mm) |
Depth | 2.2 in (56.7 mm) | cut-out dimensions | 412.4 (+/- 0.7) x 261.7 (+/- 0.4) |
Net Weight | 13.2 lb(US) (6 kg) | Main type | Performance |
IP degree of protection | IP66 front panel: | Product Certifications | RCM<br />CCC<br />CE<br />AS/NZS<br />C-tick<br />EAC |
Standards | IEC 61000-6-2<br />FCC Part 15 class A<br />CISPR 11<br />IEC 60950<br />IEC 61000-6-4<br />CSA C22.2 No. 60950<br />UL 60950 | Directives | 2004/108/EC - electromagnetic compatibility<br />2006/95/EC - low voltage directive |
Pollution degree | 2 | Ambient air temperature for operation | 32…131 °F (0…55 °C) SSD<br />32…131 °F (0…55 °C) Cfast card<br />32…113 °F (0…45 °C) HDD |
Ambient air temperature for storage | -4…140 °F (-20…60 °C) | Relative Humidity | 10…95 % non-condensing |
Operating altitude | 2000 | Vibration resistance | 1 gn 5…500 Hz)HDD |
Specifications may be subject to change without notice
