schneiderHMI (Terminals and Industrial PC)
Product Model

HMIPWC5D0E01A

Manufacturer

schneider

Category

HMI (Terminals and Industrial PC)

Product ID

30254

In Stock
Last updated: 2025/5/2
View Specifications

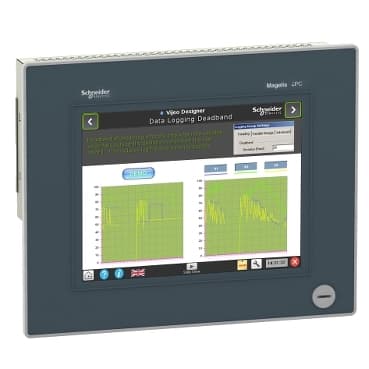

schneider HMIPWC5D0E01A

Selling Points

  • 1High-Performance CPU: Equipped with a powerful Intel i3-4010U dual-core processor for seamless operations.
  • 2Multi-Touch Interface: Features a wide multi-touch screen with IP 66, 7H hardness, and anti-scratch front panels.
  • 3Customizable Front Panel: Configurations available to meet specific application needs, ensuring optimal functionality.
  • 4Enhanced Connectivity: Includes 2 Gigabit Ethernet, 2 COM (RS-232/422/485), 2 USB 3.0, 1 HD audio port, and 1 HDMI video port.
  • 5Long-Lasting Durability: Designed to last over 50,000 hours at 25 °C/77 °F, with a 5-year manufacturer warranty.
Product Details
HMIPWC5D0E01A
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony iPC
Product or Component Type
PC panel
Terminal type
Touchscreen display
Processor name
Atom Z510 1.1 GHz cache
Chipset type
Intel US15W 400 MHz
Data storage equipment
Compact Flash card 4 GB SLC
Number of slots available for expansion
1 Compact Flash card<br />1 SD card
Display size
10.4 inch
Display Type
Active matrix colour TFT LCD with LED backlight
Display Resolution
800 x 600 pixels SVGA
Display colour
16 million colours
Luminance
41.8 fc (450 cd/m²)
View angle horizontal x vertical
160 x 120°
Touch panel
Analogue resistive
Memory Type
512 KB SRAM<br />2 GB RAM DDR2
Video controller type
Intel Graphics Media Accelerator (GMA) 500, 256 MB
Integrated connection type
2 Ethernet TCP/IP - RJ45 10BASE-T/100BASE-T/1000BASE-T<br />COM1 serial link - male SUB-D 9 - RS232C - 115 kbauds<br />USB 2.0 port - USB type A - 480 Mbit/s front panel<br />2 USB 2.0 port - USB type A - 480 Mbit/s top
Operating system
Windows Embedded Standard WES2009 - English<br />Windows Embedded Standard WES2009 - French<br />Windows Embedded Standard WES2009 - German<br />Windows Embedded Standard WES2009 - Italian<br />Windows Embedded Standard WES2009 - Spanish<br />Windows Embedded Standard WES2009 - Swedish<br />Windows Embedded Standard WES2009 - Chinese<br />Windows Embedded Standard WES2009 - Portuguese<br />Windows Embedded Standard WES2009 - Russian
Software package
Adobe PDF and multimedia reader<br />Vijeo Citect web client<br />Internet Explorer<br />Viewer Word/Excel/Power Point<br />.NET Framework 3.5<br />Vijeo Designer run time demo
[Us] rated supply voltage
24 V DC power supply)
Supply voltage limits
18…30 V
Line Rated Current
1.875 A
Inrush current
3 A
Power consumption in W
36 W
Bezel material
Aluminium alloy
Enclosure Material
Treated steel
Display material
Polyethylene sheet
Fixing mode
Enclosure door by fixing kit fasteners included)<br />Panel by fixing kit fasteners included)
Control type
ON/OFF push-button equipment ON and OFF)<br />Push-button reset)
Local signalling
Accessing CF system card (DISK) LED Yellow)<br />Power multi-colour LED -)
Width
12.7 in (323 mm)
Height
10.2 in (260 mm)
Depth
2.8 in (72 mm)
Net Weight
9.68 lb(US) (4.39 kg)
IP degree of protection
IP65 EN/IEC 61131-2 front panel (indoor use))
NEMA degree of protection
NEMA 4X front panel (indoor use)
Product certifications
CULus 508<br />CULus CSA 22-2 No 142<br />CULus HazLoc Class I Division 2 UL 1604<br />CULus HazLoc Class I Division 2 ANSI/ISA 12-12-01<br />CULus HazLoc Class I Division 2 CSA 22-2 No 213<br />CE<br />C-tick<br />GOST
Pollution degree
2 EN/IEC 61131-2
Electromagnetic compatibility
Immunity to high frequency interference EN/IEC 61131-2<br />Immunity to high frequency interference EN/IEC 61000-4-x<br />Immunity to electromagnetic emissions EN 55022 Class A<br />Immunity to electromagnetic emissions EN 55011 class A
Ambient air temperature for operation
32…122 °F (0…50 °C) vertical installation EN/IEC 61131-2<br />32…122 °F (0…50 °C) vertical installation UL 508
Ambient air temperature for storage
-4…140 °F (-20…60 °C) IEC 60068-2-2 test Bb<br />-4…140 °F (-20…60 °C) IEC 60068-2-14 test Na
Relative Humidity
10…85 % EN/IEC 60068-2-30 Db<br />10…85 % EN/IEC 60068-2-78
Operating altitude
6561.68 ft (2000 m) EN/IEC 61131-2
Vibration resistance
1.75 mm 2…9 Hz) continuous EN/IEC 60068-2-6 Fc<br />3.5 mm 2…9 Hz) intermittently EN/IEC 60068-2-6 Fc<br />0.5 gn 9…200 Hz) continuous EN/IEC 60068-2-6 Fc<br />1 gn 9…200 Hz) intermittently EN/IEC 60068-2-6 Fc<br />1 mm 3…13.2 Hz) continuous EN/IEC 60068-2-6 Fc<br />0.7 gn 13.2…100 Hz) continuous EN/IEC 60068-2-6 Fc
Shock resistance
15 gn 11 ms IEC 60068-2-27, Ea tests

Specifications may be subject to change without notice
