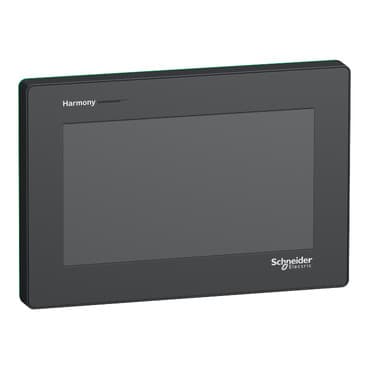

Product Model
HMISTM64
Selling Points
- 1High-resolution display for clear visibility.
- 2Advanced connectivity with 2x Ethernet ports and 2x COM ports.
- 3Long-lasting LED backlight with 50,000+ hours of service life.
- 4User-friendly interface with multi-color status indicators and customizable themes.
- 5Enhanced cybersecurity and robust IP65F protection for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony ST6 | Product or Component Type | Touch panel screen |
Software package | EcoStruxure Operator Terminal Expert | Display size | 7 inch |
Display Type | Colour TFT LCD | Display colour | 16 million colours |
Display Resolution | 800 x 480 pixels WVGA | Touch panel | Single touch analogue resistive |
Backlight lifespan | 20000 hours white | Brightness | 16 levels |
Character font | ASCII<br />ASCII (European characters)<br />Chinese (simplified Chinese)<br />Japanese (ANK, Kanji)<br />Katakana<br />Korean<br />Taiwanese (traditional Chinese) | [Us] rated supply voltage | 24 V DC +/- 20 %) |
Power consumption in W | 3.6 W | Inrush current | 30 A |
Local signalling | Status LED green, steady offline<br />Status LED green, steady operating<br />Status LED green, flashing operating<br />Status LED green, faded stand-by<br />Status LED orange, flashing software starting up<br />Status LED red, steady power supply (ON)<br />Status LED red, flashing operating<br />Status LED red, off power supply (OFF) | Number of pages | 200 application pages |
Realtime clock | Built-in 0...50 °C<br />Built-in 10...90 % RH | Fixing mode | Ø 22 mm hole 1.5 to 6 mm thick panel UL 61010-2-201<br />Ø 22 mm hole IEC 61131-2<br />Ø 22 mm hole IEC 61000-6-2 |
Front material | Plastic | marking | CE |
Cut-out dimensions | Ø 22.5 mm | Height | 5.4 in (137.2 mm) |
Width | 7.9 in (201.2 mm) | Depth | 1.3 in (33 mm) |
Net Weight | 1.08 lb(US) (0.49 kg) | Immunity to microbreaks | 2 ms |
Standards | IEC 61000-6-4<br />IEC 61000-6-2<br />IEC 61131-2<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />CSA C22.2 No 213 | Product Certifications | CE<br />UKCA<br />cULus<br />RCM<br />KC<br />cULus Class 1 Division 2<br />DNV<br />ABS<br />RINA<br />BV |
Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) | Relative humidity | 10…90 % non-condensing |
Operating altitude | 6561.68 ft (2000 m) | IP degree of protection | IP65 IEC 61131-2 front panel) |
NEMA degree of protection | NEMA 4 front panel (indoor use)<br />NEMA 13 front panel (in enclosure) | Shock resistance | 147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))IEC 61131-2 |
Vibration resistance | +/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2<br />9.8 m/s² 9…150 Hz) | Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (signal ports)<br />Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3<br />Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
Specifications may be subject to change without notice
