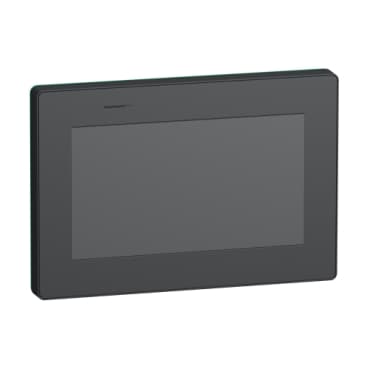

schneider HMISTM6400FW

Selling Points

  • 17-inch color TFT LCD with 800 x 480 pixel resolution for clear visibility.
  • 2Equipped with 1 COM1 serial link, 1 COM2 serial link, 2 Ethernet ports, and USB host and device ports for seamless integration.
  • 31 GB device memory, 128 MB user data memory, and 512 kB backup memory for efficient data handling.
  • 4Polycarbonate enclosure with an aluminum front, ensuring durability and resistance to environmental factors.
  • 5Powered by EcoStruxure Operator Terminal Expert software, offering multi-screen and layout objects functions for enhanced operation.
Product Details
HMISTM6400FW
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony ST6
Product or Component Type
Touch panel screen
Processor name
ARM Cortex-A8
Processor frequency
800 MHz
Memory description
1 GB device memory<br />128 MB user data memory<br />512 KB backup memory
Display size
7 inch
Display Type
Colour TFT LCD
Display colour
16 million colours
Display Resolution
800 x 480 pixels WVGA
Touch panel
Single touch analogue resistive
Backlight lifespan
20000 hours white
Brightness
16 levels
Character font
ASCII<br />ASCII (European characters)<br />Chinese (simplified Chinese)<br />Japanese (ANK, Kanji)<br />Katakana<br />Korean<br />Taiwanese (traditional Chinese)
[Us] rated supply voltage
24 V DC +/- 20 %)
Power consumption in W
10.4 W
Inrush current
30 A
Local signalling
Status LED green, steady offline<br />Status LED green, steady operating<br />Status LED green, flashing operating<br />Status LED green, faded stand-by<br />Status LED orange, flashing software starting up<br />Status LED red, steady power supply (ON)<br />Status LED red, flashing operating<br />Status LED red, off power supply (OFF)
Number of pages
200 application pages
Integrated connection type
1 COM1 serial link - female RJ45 - RS232C/RS485 2400...115200 bps)<br />1 USB 2.0 type A<br />1 USB 2.0 type micro B<br />2 Ethernet - female RJ45 - 10/100BASE-T
Realtime clock
Built-in 0...50 °C<br />Built-in 10...90 % RH
Downloadable protocols
Modbus<br />Uni-TE<br />Third party protocols
Product brand
Schneider Electric Modicon<br />Mitsubishi Melsec<br />Omron Sysmac<br />Rockwell Automation Allen-Bradley<br />Siemens Simatic
Fixing mode
Ø 22 mm hole 1.5 to 6 mm thick panel UL 61010-2-201<br />Ø 22 mm hole EN 61131-2<br />Ø 22 mm hole IEC 61000-6-2
Enclosure Material
PC
Front material
Plastic
Cut-out dimensions
Ø 22.5 mm
Height
5.4 in (137.2 mm)
Width
7.9 in (201.2 mm)
Depth
2.3 in (57.7 mm)
Net Weight
1.68 lb(US) (0.76 kg)
Immunity to microbreaks
2 ms
Standards
EN 61000-6-4<br />EN 61000-6-2<br />EN 61131-2<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />CSA C22.2 No 213
Product Certifications
CE<br />UKCA<br />cULus<br />RCM<br />KC<br />cULus Class 1 Division 2<br />ABS<br />RINA<br />DNV
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility
Ambient Air Temperature for Operation
32…122 °F (0…50 °C)
Ambient Air Temperature for Storage
-4…140 °F (-20…60 °C)
Relative humidity
10…90 % non-condensing
Operating altitude
6561.68 ft (2000 m)
IP degree of protection
IP20 IEC 61131-2 rear panel)<br />IP65 IEC 61131-2 front panel)
NEMA degree of protection
NEMA 4 front panel (indoor use)<br />NEMA 13 front panel (in enclosure)
Shock resistance
147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))EN/IEC 61131-2
Vibration resistance
+/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2<br />9.8 m/s² 9…150 Hz)
Electromagnetic compatibility
Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (signal ports)<br />Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3<br />Electrostatic discharge immunity test - test level: 8 kV (air discharge)
