Product Model

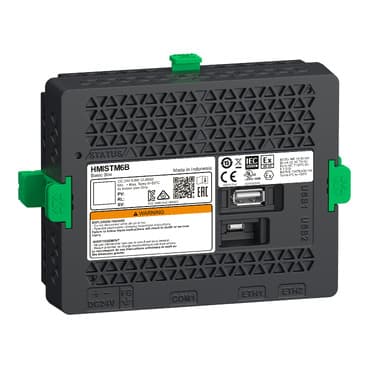

HMISTM6B
Selling Points
- 1High-Resolution 7-Inch Touchscreen: Offers clear and detailed visualizations for efficient monitoring and control.
- 2Robust Certifications: Meets stringent standards including UL 61010-2-201, CSA C22.2 No 61010-2-201, and IEC 61000-6-2 for reliable operation in harsh environments.
- 3Dual Ethernet Connectivity: Ensures seamless communication and data transfer with 2x Ethernet ports.
- 4User-Friendly Interface: Powered by EcoStruxure Operator Terminal Expert software for intuitive user experience.
- 5Durable Design: Built with IP65F protection and resistant to shock and vibration, ensuring long-lasting performance in demanding industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony ST6 | Product or Component Type | Touch panel screen |
Software package | EcoStruxure Operator Terminal Expert | Processor name | ARM Cortex-A8 |
Processor frequency | 800 MHz | Memory description | 1 GB device memory<br />128 MB user data memory<br />512 KB backup memory |
[Us] rated supply voltage | 24 V DC +/- 20 %) | Power consumption in W | 6.8 W |
Inrush current | 30 A | Local signalling | Status LED green, steady offline<br />Status LED green, steady operating<br />Status LED green, flashing operating<br />Status LED green, faded stand-by<br />Status LED orange, flashing software starting up<br />Status LED red, steady power supply (ON)<br />Status LED red, flashing operating<br />Status LED red, off power supply (OFF) |
Number of pages | 200 application pages | Port Ethernet | 10/100BASE |
Integrated connection type | 1 COM1 serial link - female RJ45 - RS232C/RS485 2400...115200 bps)bottom<br />1 USB 2.0 type Aback<br />1 USB 2.0 type micro Bback<br />2 Ethernet - female RJ45bottom | Supply | External supply |
Realtime clock | Built-in 0...50 °C<br />Built-in 10...90 % RH | Downloadable protocols | Modbus<br />Uni-TE<br />Third party protocols |
Product brand | Schneider Electric Modicon<br />Mitsubishi Melsec<br />Omron Sysmac<br />Rockwell Automation Allen-Bradley<br />Siemens Simatic | Fixing mode | Ø 22 mm hole 1.5 to 6 mm thick panel UL 61010-2-201<br />Ø 22 mm hole IEC 61131-2<br />Ø 22 mm hole IEC 61000-6-2 |
Enclosure Material | PC | marking | CE |
Cut-out dimensions | Ø 22.5 mm | Height | 4.3 in (108.2 mm) |
Width | 5.7 in (145.6 mm) | Depth | 1.6 in (41.4 mm) |
Net Weight | 0.60 lb(US) (0.27 kg) | Immunity to microbreaks | 2 ms |
Standards | IEC 61000-6-4<br />IEC 61000-6-2<br />IEC 61131-2<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />CSA C22.2 No 213 | Product Certifications | CE<br />UKCA<br />cULus<br />RCM<br />KC<br />cULus Class 1 Division 2<br />DNV<br />ABS<br />RINA<br />BV |
Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) | Relative humidity | 10…90 % non-condensing |
Operating altitude | 6561.68 ft (2000 m) | IP degree of protection | IP20 IEC 61131-2 rear panel) |
Shock resistance | 147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))IEC 61131-2 | Vibration resistance | +/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2<br />9.8 m/s² 9…150 Hz) |
Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (signal ports)<br />Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3<br />Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
Specifications may be subject to change without notice
