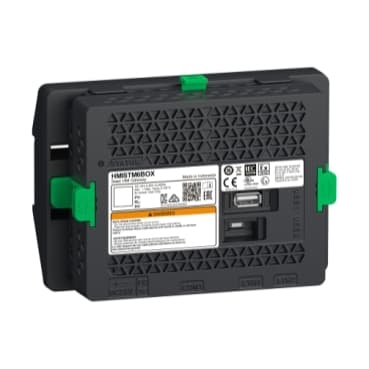

schneider HMISTM6BOX

Selling Points

  • 1Modular Design: Compact and versatile, perfect for various industrial applications.
  • 2High-Performance CPU: Runs on 800MHz ARM Cortex-A8 CPU for efficient operation.
  • 3Advanced Connectivity: Supports 2x Ethernet ports, 1x COM1 (RS-232C or RS-485), and 2x USB 2.0 ports.
  • 4Enhanced Security: Equipped with EcoStruxure Secure Connect Advisor for cybersecurity.
  • 5Durable and Reliable: Meets standards like EN 61000-6-4, UL 61010-2-201, and certifications like CSA, CE, and ATEX Zone2/22.
Product Details
HMISTM6BOX
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony STM6
Product or Component Type
Modular HMI box
Software package
EcoStruxure Operator Terminal Expert<br />Web viewer
Operating System
Linux
Processor name
ARM Cortex-A8
Processor frequency
800 MHz
Data storage equipment
1 GB Flash disk NAND
Memory description
512 KB backup memory<br />512 MB internal<br />1 GB flash
[Us] rated supply voltage
24 V DCpower supply
Local signalling
LED multi-colour status
Port Ethernet
10BASE-T/100BASE-T
Integrated connection type
2 Ethernet TCP/IP - RJ45<br /> COM1 serial link - SUB-D 9 - RS232C/RS422/RS485 2400...115200 bps)<br /> USB 2.0 port - micro B USB<br /> display port - RJ45<br />1 USB 2.0 port - USB type A
Type of cooling
Natural convection
Realtime clock
Built-in
Height
4.0 in (101 mm)
Width
5.9 in (150.5 mm)
Depth
2.5 in (63.3 mm)
Net Weight
1.005 lb(US) (0.456 kg)
Standards
CSA C22.2 No 142<br />ANSI/ISA 12-12-01<br />UL 508<br />CSA C22.2 No 213<br />IEC 61132-2
Product Certifications
CE<br />UKCA<br />cULus<br />RCM<br />KC<br />cULus Class 1 Division 2<br />DNV<br />ABS<br />RINA<br />BV
Pollution degree
2 IEC 61131-2 ed.3
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-4…140 °F (-20…60 °C)
Relative humidity
10…90 % non-condensing
Operating altitude
2000
Shock resistance
147 m/s²IEC 61131-2
Vibration resistance
3.5 mm constant amplitude 5…9 Hz) IEC 61131-2<br />9.8 m/s² 9…150 Hz) IEC 61131-2
Electromagnetic compatibility
Electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3

Specifications may be subject to change without notice
