schneiderHMI (Terminals and Industrial PC)
Product Model

HMISTM6BOXIOT

Manufacturer

schneider

Category

HMI (Terminals and Industrial PC)

Product ID

30294

In Stock
Last updated: 2025/6/17
View Specifications

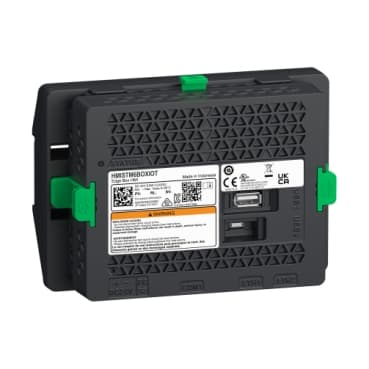

schneider HMISTM6BOXIOT

Selling Points

  • 1Advanced Connectivity: Equipped with 1COM, 2Ethernet, and 2 USB ports for seamless communication.
  • 2High Performance: Powered by 512 MB internal RAM and 1 GB NAND flash for efficient operation.
  • 3Durable Design: Conforms to IEC 61131-2 and IEC 61000-4-2 level 3 for robust electrostatic discharge immunity.
  • 4Versatile Applications: Suitable for various deployments in industrial, tertiary, and automation projects.
  • 5Energy Efficiency: Aligns with energy-saving goals and reduces environmental impact with eco-friendly solutions.
Product Details
HMISTM6BOXIOT
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony ST6
Product or Component Type
Modular HMI box
Software package
EcoStruxure machine SCADA expert runtime 500 tags pre-activated<br />EcoStruxure machine SCADA expert runtime (mobile) 1 client activated<br />EcoStruxure secure connect advisor pre-installed
Operating System
Linux
Processor name
ARM Cortex-A8
Processor frequency
800 MHz
Memory description
512 KB NVRAM backup memory<br />512 MB internal RAM<br />1 GB NAND flash
[Us] rated supply voltage
24 V DC
Local signalling
LED multi-colour
Integrated connection type
2 Ethernet TCP/IP - RJ45 - 10/100BASE-T<br />1 COM1 serial link - RJ45 - RS232C/RS485 2400...115200 bps)<br />1 USB 2.0 port - USB micro-B<br />1 USB 2.0 port - USB type A
Type of cooling
Natural convection
Realtime clock
Built-in
Height
4.0 in (101 mm)
Width
5.9 in (150.5 mm)
Depth
2.5 in (63.3 mm)
Net Weight
1.005 lb(US) (0.456 kg)
Standards
UL 61010<br />CSA C22.2 No 61010-2-201<br />UL 121201<br />CSA C22.2 No 213<br />IEC 61132-2
Product Certifications
CE<br />UKCA<br />cULus<br />RCM<br />KC<br />cULus Class 1 Division 2<br />ABS<br />RINA<br />DNV
Pollution degree
2 IEC 61131-2 ed.3
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Storage
-4…140 °F (-20…60 °C)
Relative humidity
10…90 % non-condensing
Operating altitude
6561.68 ft (2000 m)
Shock resistance
147 m/s²IEC 61131-2
Vibration resistance
3.5 mm constant amplitude 5…9 Hz) IEC 61131-2<br />9.8 m/s² 9…150 Hz) IEC 61131-2
Electromagnetic compatibility
Electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3

Specifications may be subject to change without notice
