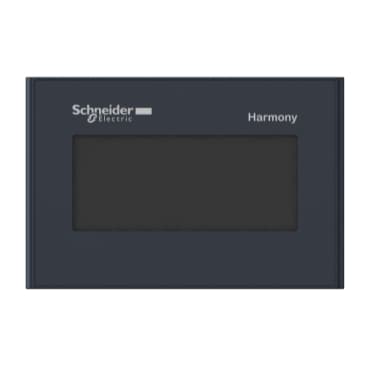

schneider HMISTO501

Selling Points

  • 1High-resolution display: 200 x 80 pixels for clear visibility.
  • 2Versatile connectivity: Equipped with 1 USB 2.0 type mini B and 1 USB 2.0 type A.
  • 3Long-lasting backlight: Up to 50,000 hours with pink or white backlight.
  • 4User-friendly interface: Supports multiple languages including Korean, Japanese, and Chinese.
  • 5Robust design: IP65 front panel protection and NEMA 4X for indoor use.
Product Details
HMISTO501
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony STO & STU
Product or Component Type
Touch panel screen
Software Designation
Vijeo Designer
Operating System
Harmony
Processor name
CPU RISC
Display size
3.4 inch
Display Type
Backlit monochrome STN LCD
Background colour
White, pink and red
Display Resolution
200 x 80 pixels
Touch panel
Analogue
Backlight lifespan
10000 hours red<br />50000 hours pink<br />50000 hours white
Brightness
8 levels
Contrast
16 levels via touch panel
Character font
Korean<br />Japanese (ANK, Kanji)<br />Taiwanese (traditional Chinese)<br />Chinese (simplified Chinese)<br />ASCII
[Us] rated supply voltage
24 V DC +/- 20 %
Inrush current
30 A
Local signalling
for normal operation 1 LED (green)
Power consumption in W
5 W
Number of pages
Limited by internal memory capacity
Processor frequency
333 MHz
Memory description
Application memory 16 MB<br />Back up of data 128 kB
Integrated connection type
1 USB 2.0 type mini B<br />1 USB 2.0 type A<br /> power supply - removable screw terminal block<br /> serial link - 9-pin terminal block - RS232C
Supply
External source
Realtime clock
Access to the PLC real-time clock
Downloadable protocols
Zelio
Range Compatibility
Zelio Logic
Fixing mode
By 2 spring clips 1.6...5 mm thick panel
Enclosure Material
PPT
marking
CE
Immunity to microbreaks
3 ms
Standards
IEC 61000-6-2<br />FCC Class A<br />UL 508<br />UL 1604<br />EN 61131-2
Product Certifications
CE<br />UL Class 1 Division 2 T5<br />UL Class 1 Division 2 T4A<br />C-tick<br />cULus
Ambient Air Temperature for Operation
32…122 °F (0…50 °C)
Ambient Air Temperature for Storage
-4…140 °F (-20…60 °C)
Relative humidity
0…90 % without condensation
Operating altitude
<= 6561.68 ft (2000 m)
IP degree of protection
IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel)
NEMA degree of protection
NEMA 4X front panel indoor use)
Shock resistance
15 gn 11 msIEC 60068-2-27
Vibration resistance
+/- 3.5 mm 5…9 Hz) IEC 60068-2-6<br />1 gn 9…150 Hz) IEC 60068-2-6
Electromagnetic compatibility
Resistance to radiated electromagnetic fields - test level: 10 V/m conforming to IEC 61000-4-3
