Product Model

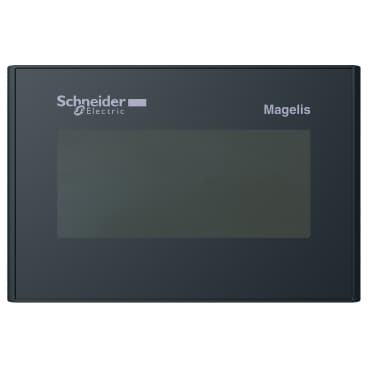

HMISTO512
Selling Points
- 1Compact Design: The HMISTO512 is a 3.4-inch monochrome touch panel screen, ideal for various industrial applications.
- 2Robust Connectivity: Equipped with USB 2.0 ports and a serial link for seamless integration with Schneider Electric and third-party products.
- 3Long-Lasting Backlight: Backlight lifespan of up to 50,000 hours with pink and white, ensuring prolonged usage without replacement.
- 4Durable Construction: Built with PPT material, resistant to microbreaks, shock, and vibration, ensuring reliable operation in harsh environments.
- 5Comprehensive Certifications: Meets international standards including UL Class 1 Division 2, CE, C-Tick, and GOST certifications for global use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony STO & STU | Product or Component Type | Touch panel screen |
Software Designation | Vijeo Designer | Operating System | Harmony |
Processor name | CPU RISC | Display size | 3.4 inch |
Display Type | Backlit monochrome STN LCD | Background colour | White, pink and red |
Display Resolution | 200 x 80 pixels | Touch panel | Analogue |
Backlight lifespan | 10000 hours red<br />50000 hours pink<br />50000 hours white | Brightness | 8 levels |
Contrast | 16 levels via touch panel | Character font | Japanese (ANK, Kanji)<br />Korean<br />ASCII<br />Taiwanese (traditional Chinese)<br />Chinese (simplified Chinese) |
[Us] rated supply voltage | 24 V DC +/- 20 % | Inrush current | 30 A |
Local signalling | for normal operation 1 LED (green) | Power consumption in W | 5 W |
Number of pages | Limited by internal memory capacity | Processor frequency | 333 MHz |
Memory description | Application memory 16 MB<br />Back up of data 128 kB | Integrated connection type | 1 USB 2.0 type mini B<br />1 USB 2.0 type A<br /> power supply - removable screw terminal block<br /> COM1 serial link - female RJ45 - RS232C/RS485 <= 115.2 kbits/s) |
Supply | External source | Realtime clock | Access to the PLC real-time clock |
Downloadable protocols | Third party protocols<br />Uni-TE<br />Modbus | Fixing mode | By 2 spring clips 1.6...5 mm thick panel |
Enclosure Material | PPT | marking | CE |
Height | 3.05 in (77.5 mm) | Width | 4.6 in (116.5 mm) |
Depth | 1.4 in (36.5 mm) | Immunity to microbreaks | 3 ms |
Standards | FCC Class A<br />UL 1604<br />UL 508<br />IEC 61000-6-2<br />EN 61131-2 | Product Certifications | UL Class 1 Division 2 T4A<br />UL Class 1 Division 2 T5<br />C-tick<br />cULus<br />GOST<br />CE<br />KCC |
Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) | Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
Relative humidity | 0…90 % without condensation | Operating altitude | <= 6561.68 ft (2000 m) |
IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) | NEMA degree of protection | NEMA 4X front panel indoor use) |
Shock resistance | 15 gn 11 msIEC 60068-2-27 | Vibration resistance | +/- 3.5 mm 5…9 Hz) IEC 60068-2-6<br />1 gn 9…150 Hz) IEC 60068-2-6 |
Electromagnetic compatibility | Resistance to radiated electromagnetic fields - test level: 10 V/m conforming to IEC 61000-4-3 |
Specifications may be subject to change without notice
