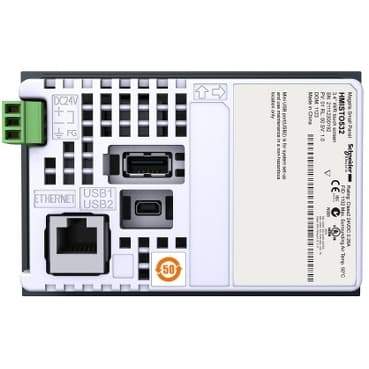

schneider HMISTO532

Selling Points

  • 1The HMISTO532 features a compact 3.4-inch monochrome display, perfect for space-constrained applications.
  • 2With over 1 million touch times, this panel ensures long-lasting performance in demanding environments.
  • 3Equipped with Ethernet connectivity (10/100BASE-TX), it supports seamless integration with various systems.
  • 4The panel consumes only 5 watts of power, making it an energy-efficient solution for your needs.
  • 5Compatible with Vijeo Designer and supports multiple operating systems including Linux, DOS, and Windows, ensuring broad application compatibility.
Product Details
HMISTO532
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony STO & STU
Product or Component Type
Touch panel screen
Software Designation
Vijeo Designer
Operating System
Harmony
Processor name
CPU RISC
Display size
3.4 inch
Display Type
Backlit monochrome STN LCD
Background colour
White, pink and red
Display Resolution
200 x 80 pixels
Touch panel
Analogue
Backlight lifespan
10000 hours red<br />50000 hours pink<br />50000 hours white
Brightness
8 levels
Contrast
16 levels via touch panel
Character font
Korean<br />ASCII<br />Japanese (ANK, Kanji)<br />Chinese (simplified Chinese)<br />Taiwanese (traditional Chinese)
[Us] rated supply voltage
24 V DC +/- 20 %
Inrush current
30 A
Local signalling
for normal operation 1 LED (green)
Power consumption in W
5 W
Number of pages
Limited by internal memory capacity
Processor frequency
333 MHz
Port Ethernet
10/100BASE-TX
Memory description
Application memory 16 MB<br />Back up of data 128 kB
Integrated connection type
1 USB 2.0 type mini B<br />1 USB 2.0 type A<br /> power supply - removable screw terminal block<br />1 Ethernet TCP/IP - 1 RJ45
Supply
External source
Realtime clock
Access to the PLC real-time clock
Downloadable protocols
XWAY TCP/IP<br />Modbus TCP/IP<br />Third party protocols
Fixing mode
By 2 spring clips 1.6...5 mm thick panel
Enclosure Material
PPT
marking
CE
Immunity to microbreaks
3 ms
Standards
UL 508<br />FCC Class A<br />IEC 61000-6-2<br />UL 1604<br />EN 61131-2
Product Certifications
UL Class 1 Division 2 T4A<br />C-tick<br />cULus<br />CE<br />UL Class 1 Division 2 T5
Ambient Air Temperature for Operation
32…122 °F (0…50 °C)
Ambient Air Temperature for Storage
-4…140 °F (-20…60 °C)
Relative humidity
0…90 % without condensation
Operating altitude
<= 6561.68 ft (2000 m)
IP degree of protection
IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel)
NEMA degree of protection
NEMA 4X front panel indoor use)
Shock resistance
15 gn 11 msIEC 60068-2-27
Vibration resistance
+/- 3.5 mm 5…9 Hz) IEC 60068-2-6<br />1 gn 9…150 Hz) IEC 60068-2-6
Electromagnetic compatibility
Resistance to radiated electromagnetic fields - test level: 10 V/m conforming to IEC 61000-4-3

Specifications may be subject to change without notice
