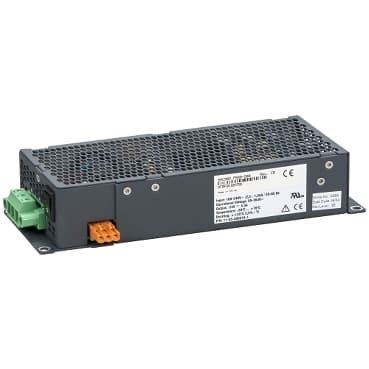

Product Model
HMIYPMAC61
Selling Points
- 1Reliable AC Power Supply: Ensures stable operation of 12 Panel PCs in industrial environments.
- 2Durable Design: Built to withstand harsh conditions, extending the lifespan of your HMI systems.
- 3Easy Installation: Simple setup with minimal technical expertise required, reducing downtime.
- 4Comprehensive Warranty: Covered by a 12-month warranty from WiAutomation, with additional protection for non-compliant products.
- 5Versatile Compatibility: Compatible with a wide range of industrial PCs, making it a versatile solution for various automation needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony iPC | Product or Component Type | Power supply |
accessory / separate part category | Spare part | Accessory / separate part destination | 12" Harmony Panel PC |
Input voltage | 100...240 V AC 45...65 Hz | Input current | 20 mA 100 V AC |
Output Voltage | 24 V DC +/- 10 % | Line Rated Current | 5.5 A |
Range Compatibility | Harmony iPC | Net Weight | 1.3 lb(US) (0.6 kg) |
Ambient air temperature for operation | 32…131 °F (0…55 °C) | Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
Relative Humidity | 5…90 % non-condensing | IP degree of protection | IP20 EN 60529 |
Vibration resistance | 0.5 gn 9…150 Hz)<br />1 gn 9…150 Hz)<br />2 gn 8…200 Hz)<br />4 gn 200…500 Hz)<br />1.75 mm 2…9 Hz)<br />3.5 mm 2…9 Hz)<br />7.5 mm 2…9 Hz) | Shock resistance | 15 gn operation 11 ms<br />30 gn transport 6 ms<br />30 gn storage 6 ms |
Specifications may be subject to change without notice
