Product Model

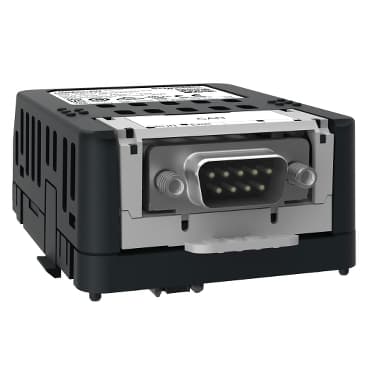

HMIZGCAN
Selling Points
- 1CANopen Compatibility: Seamlessly integrates with CANopen networks for efficient communication in industrial automation.
- 2Universal Panel Support: Compatible with a wide range of universal panels, ensuring versatility in various applications.
- 3High-Performance Connectivity: Features dual serial ports and Gigabit Ethernet ports for reliable and high-speed data transfer.
- 4Robust Design: Built with durable materials, including aluminum, to withstand harsh industrial environments up to 60°C.
- 5Easy Installation: Modular design with anti-drop retractable fasteners simplifies installation without additional accessories.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony GTU | Product or Component Type | CANopen slave unit |
Accessory / separate part destination | Universal panel | Power consumption in W | 0.7 W |
Input voltage | 3.3 V DC | Range Compatibility | Harmony GTU |
Width | 2.4 in (60 mm) | Height | 3.4 in (87 mm) |
Depth | 1.6 in (41 mm) | Net Weight | 0.2 lb(US) (0.1 kg) |
Ambient air temperature for operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
Relative Humidity | 10…90 % | IP degree of protection | IP2 |
Vibration resistance | 3.5 mm constant amplitude 5…9 Hz)EN/IEC 61131-2<br />9.8 m/s² 9…150 Hz)EN/IEC 61131-2 | Shock resistance | 147 m/s² |
Product Certifications | IEC-Ex<br />KC<br />CE<br />EAC<br />RCM<br />ATEX zone 2/22<br />UKCA<br />UKEX |
Specifications may be subject to change without notice
