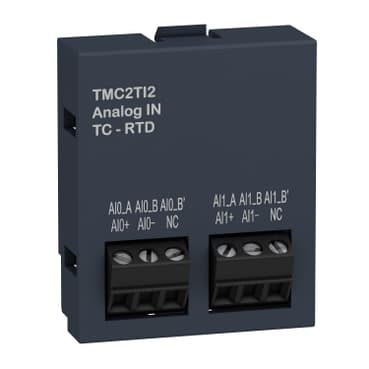

Product Model
TMC2TI2
Selling Points
- 1Compatible with Modicon M221 Logic Controller and RS232/RS485 Screw Terminal Block.
- 2Supports two temperature inputs for precise temperature monitoring.
- 3Non-isolated design for easy integration into existing systems.
- 414-bit resolution for high accuracy in temperature readings.
- 5Dimensions: 15 mm L x 35 mm W x 41 mm H for compact installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M221 | Product or Component Type | Analogue input cartridge |
Product Compatibility | Modicon M221C | Analogue input number | 2 |
Analogue input type | thermocouple - 200...1000 °C thermocouple J<br /> thermocouple - 200...1300 °C thermocouple K<br /> thermocouple 0...1760 °C thermocouple R<br /> thermocouple 0...1760 °C thermocouple S<br /> thermocouple 0...1820 °C thermocouple B<br /> thermocouple - 200...400 °C thermocouple T<br /> thermocouple - 200...1300 °C thermocouple N<br /> thermocouple - 200...800 °C thermocouple E<br /> thermocouple 0...2315 °C thermocouple C<br />Ni 100/Ni 1000 temperature probe - 60...180 °C<br />Pt 100 temperature probe - 200...850 °C<br />Pt 1000 temperature probe - 200...600 °C | Analogue input resolution | 14 bits |
LSB value | 0.1 °C | Sampling duration | 125 ms thermocouple<br />250 ms temperature probe |
Absolute accuracy error | +/- 0.1 % of full scale at 77 °F (25 °C) for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe<br />+/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple K - 200...0 °C<br />+/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple K 0...1300 °C<br />+/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple J - 200...0 °C<br />+/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple J 0...1000 °C<br />+/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple E - 200...0 °C<br />+/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple E 0...800 °C<br />+/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple T - 200...0 °C<br />+/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple T 0...400 °C<br />+/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple N - 200...0 °C<br />+/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple N 0...1300 °C<br />+/- 6 °C at 77 °F (25 °C) for thermocouple R, S 0...200 °C<br />+/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple R, S 200...1760 °C<br />+/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple C 0...2315 °C | Temperature Drift | +/- 0.02 %FS/°C |
Repeat accuracy | +/- 0.5 %FS | Non-linearity | +/- 0.01 %FS |
Cross talk | <= 1 LSB | Type of Cable | Twisted shielded pairs cable |
Electrical connection | 3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for inputs | Maximum cable distance between devices | Twisted shielded pairs cable <98.4 ft (30 m) input |
Insulation | Non-insulated between analogue input and internal logic | Height | 1.6 in (41 mm) |
Depth | 0.6 in (15 mm) | Width | 1.4 in (35 mm) |
Net Weight | 0.033 lb(US) (0.015 kg) | Input impedance | >= 1 MOhm |
Immunity to microbreaks | 10 ms |
Specifications may be subject to change without notice
