Product Model

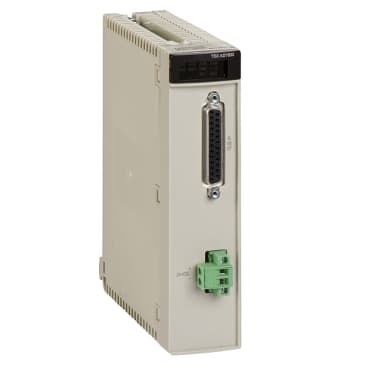

TSXASY800C
Selling Points
- 1The TSXASY800C features 13-bit resolution for each output type, ensuring precise and accurate signal representation.
- 2With a conversion time of approximately 5 ms, this module provides fast and responsive operations in dynamic industrial environments.
- 3The module offers strong protection between channels, the bus, and the ground with 1000 Vrms isolation, minimizing electrical interference.
- 4Supports current ranges of 0 to 20 mA and 4 to 20 mA, as well as a voltage range of ±10 V, providing flexibility for different signal requirements.
- 5Includes overload and short-circuit protection, ensuring safe operation in demanding conditions and meeting international safety standards like CE and CSA C22.2 No 213.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Analog output module |
Analogue output number | 8 | Analogue output type | Current 0...20 mA<br />Current 4...20 mA<br />Voltage +/- 10 V |
Analog/digital conversion | 13 bits + sign +/- 10 V<br />13 bits 0...20 mA<br />13 bits 4...20 mA | Conversion time | 5 ms |
Measurement resolution | 1.28 mV +/- 10 V<br />2.56 µA 0...20 mA<br />2.56 µA 4...20 mA | Electrical Connection | 1 SUB-D 25 connector |
Measurement error | 0.14 % of full scale +/- 10 V 25 °C<br />0.21 % of full scale 0...20 mA 25 °C<br />0.21 % of full scale 4...20 mA 25 °C<br />0.28 % of full scale +/- 10 V 0...60 °C<br />0.52 % of full scale 0...20 mA 0...60 °C<br />0.52 % of full scale 4...20 mA 0...60 °C | Isolation between channels | Common point |
Isolation between channels and bus | 1000 Vrms | Isolation between channels and ground | 1000 Vrms |
Protection Type | Overload protection<br />Short-circuit protection | Output voltage limits | <= 30 V |
Load impedance ohmic | < 600 Ohm 0...20 mA<br />< 600 Ohm 4...20 mA<br />> 1000 Ohm +/- 10 V | Maximum load inductance | 0.3 mH |
Maximum load capacitance | 0.1 µF | marking | CE |
Current consumption | 200 mA 5 V DC<br />300 mA 24 V DC | Module format | Standard |
Terminals description PLC n°1 | (20)OUT_ANA_COM#4<br />PW_POS#<br />(6)OUT_ANA_COM#3<br />(16)OUT_ANA_CUR#1<br />(13)IN_ANA_STD#<br />(2)OUT_ANA_CUR#0<br />(9)OUT_ANA_COM#5<br />(25)OUT_ANA_CUR#7<br />(4)OUT_ANA_VOLT#2<br />(21)OUT_ANA_VOLT#5<br />(1)OUT_ANA_VOLT#0<br />(11)OUT_ANA_CUR#6<br />(3)OUT_ANA_COM#1<br />(22)OUT_ANA_CUR#5<br />(8)OUT_ANA_CUR#4<br />(10)OUT_ANA_VOLT#6<br />(15)OUT_ANA_VOLT#1<br />(12)OUT_ANA_COM#7<br />(19)OUT_ANA_CUR#3<br />(17)OUT_ANA_COM#2<br />(14)OUT_ANA_COM#0<br />(24)OUT_ANA_VOLT#7<br />PW_NEG#<br />(5)OUT_ANA_CUR#2<br />(7)OUT_ANA_VOLT#4<br />(23)OUT_ANA_COM#6<br />(18)OUT_ANA_VOLT#3 | Standards | CSA C22.2 No 213 Class I Division 2 Group D<br />UL 508<br />IEC 61131-2<br />CSA C22.2 No 213 Class I Division 2 Group A<br />89/336/EEC<br />92/31/EEC<br />93/68/EEC<br />CSA C22.2 No 213 Class I Division 2 Group C<br />CSA C22.2 No 213 Class I Division 2 Group B<br />73/23/EEC<br />CSA C22.2 No 142 |
Product Certifications | RINA<br />ABS<br />RMRS<br />DNV<br />LR<br />BV<br />GL | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage |
Operating altitude | 0...6561.68 ft (0...2000 m) | Protective treatment | Conformal coating Humiseal 1A33<br />TC |
IP Degree of Protection | IP20 | Pollution degree | 2 |
Specifications may be subject to change without notice
