Product Model

TSXASZ200

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

34417

In Stock
Last updated: 2025/5/2
View Specifications

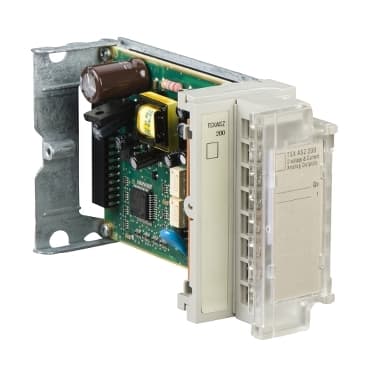

schneider TSXASZ200

Selling Points

  • 12-channel analog output module with 11-bit conversion.
  • 2Consumes 150mA at 5VDC, efficient power usage.
  • 3Compatible with Modicon TSX Micro systems.
  • 42-year warranty available from authorized dealers.
  • 5Compliant with China RoHS regulations for environmental safety.
Product Details
TSXASZ200
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon TSX Micro automation platform
Product or Component Type
Analog output module
Number of channels
2
Analogue Output Type
0...20 mA or 4...20 mA<br />+/- 10 V
Analog/digital conversion
11 bits + sign 0...20 mA or 4...20 mA<br />11 bits +/- 10 V
Measurement resolution
0...20 mA or 4...20 mA<br />+/- 10 V
Output load
<= 0.6 Ohm 0...20 mA or 4...20 mA<br />>= 1 Ohm +/- 10 V
Protection type
Open-circuit 0...20 mA or 4...20 mA
Temperature drift
0.107 %/10 °C 0...20 mA or 4...20 mA<br />0.083 %/10 °C +/- 10 V
current consumption
150 mA
Isolation voltage
1500 V AC
Net Weight
0.4 lb(US) (0.2 kg)

Specifications may be subject to change without notice
