Product Model

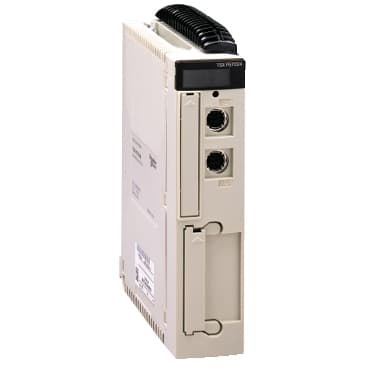

TSXP57104M
Selling Points
- 1High-Performance Unity Processor: Designed for industrial control applications with robust performance.
- 2Flexible Slot Configuration: Supports 2 racks with 12 slots or 4/6/8 slots for versatile integration.
- 3Enhanced I/O Capacity: Handles up to 512 discrete I/O and 24 analog I/O for comprehensive connectivity.
- 4Efficient Data Transfer: Equipped with a serial link at 19.2 kbit/s via 2 female mini-DIN RS485 connectors.
- 5Expandable Memory: Includes a PCMCIA card with 256 kB additional data storage for enhanced memory capacity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon Premium Automation platform | Product or Component Type | Unity processor |
Software Designation | Unity Pro | Number of racks | 2 12 slots<br />4 4/6/8 slots |
Number of slots | 16<br />24<br />32 | Discrete I/O processor capacity | 512 I/O |
Analogue I/O processor capacity | 24 I/O | Number of application specific channel | 8 |
Integrated connection type | Non isolated serial link 2 female mini DIN RS485)19.2 kbit/s) | Communication module processor capacity | 2<br />1 |
Memory description | Internal RAM (with PCMCIA card) 224 kB program<br />Internal RAM (with PCMCIA card) 96 kB data<br />Internal RAM (without PCMCIA card) 96 kB program and data<br />PCMCIA card 256 kB additional data storage | Maximum size of object areas | 32 kB (elementary and derived data) unlocated internal data<br />4096 %Mi located internal bits<br />64 %KWi constant words located internal data<br />64 %MWi internal words located internal data<br />64 kB (DFB and EFB function blocks) unlocated internal data |
Application structure | 32 event tasks<br />1 master task<br />1 fast task | Execution time per instruction | 0.19 µs Boolean without PCMCIA card<br />0.25 µs Boolean with PCMCIA card<br />0.25 µs word or fixed-point arithmetic without PCMCIA card<br />0.5 µs word or fixed-point arithmetic with PCMCIA card<br />1.75...2.6 µs floating points with PCMCIA card<br />1.75...2.6 µs floating points without PCMCIA card |
Number of instructions per ms | 2.1 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card<br />3.1 Kinst/ms 100 % Boolean with PCMCIA card<br />3.71 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card<br />4.76 Kinst/ms 100 % Boolean without PCMCIA card | System overhead | 0.3 ms fast task<br />1 ms master task |
marking | CE | Local signalling | for processor running (RUN) 1 LED (green)<br /> for I/O module or configuration fault (I/O) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for activity on TER or AUX terminal port (TER) 1 LED (yellow) |
Current consumption | 850 mA 5 V DC | Module format | Standard |
Net Weight | 0.84 lb(US) (0.38 kg) | Standards | CSA C22.2 No 213 Class I Division 2 Group A<br />73/23/EEC<br />89/336/EEC<br />UL 508<br />92/31/EEC<br />93/68/EEC<br />CSA C22.2 No 142<br />CSA C22.2 No 213 Class I Division 2 Group C<br />CSA C22.2 No 213 Class I Division 2 Group D<br />CSA C22.2 No 213 Class I Division 2 Group B<br />IEC 61131-2 |
Product Certifications | RMRS<br />GL<br />LR<br />ABS<br />BV<br />DNV<br />RINA | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage |
Operating altitude | 0...6561.68 ft (0...2000 m) | Protective treatment | TC |
IP Degree of Protection | IP20 | Pollution degree | 2 |
Specifications may be subject to change without notice
