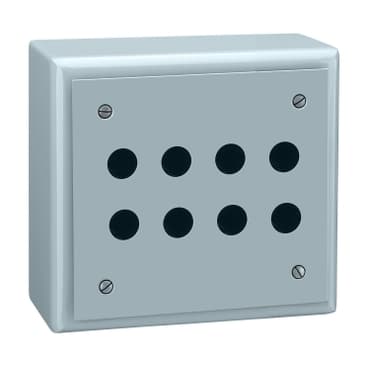

Product Model
XB2SL42009
Selling Points
- 1Made from high-quality aluminum alloy for long-lasting performance.
- 2Measures 150 x 150 x 78 mm, perfect for tight spaces in industrial settings.
- 3Includes 8 cut-outs compatible with 22mm control and signaling units.
- 4Conforms to IEC 60529 and NF C 20-010 standards, ensuring reliable operation in harsh environments.
- 5Features a blue base and cover for easy identification and aesthetic appeal.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XAP | Product or Component Type | Empty control station |
Device short name | XB2SL | Product destination | For Ø 22 mm control and signalling units |
Product front plate size | 150 x 150 mm | Usable depth | 3.07 in (78 mm) |
Number of cut-out | 8 cut-outs | Colour of base of enclosure | Blue |
Colour of cover | Blue | Material | Aluminium alloy |
Cable entry | 2 holes with blanking plug for cable gland 0.5 in (12 mm) | Product mounting | Flush mounting |
IP degree of protection | IP54 IEC 60529<br />IP547 NF C 20-010 | Number of vertical rows | 4 |
Net Weight | 2.12 lb(US) (0.96 kg) | Protective treatment | TC |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Electrical shock protection class | Class I IEC 60536<br />Class I NF C 20-030 |
Specifications may be subject to change without notice
