XB4BD53GEX

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

35027

In Stock
Last updated: 2025/4/29
View Specifications

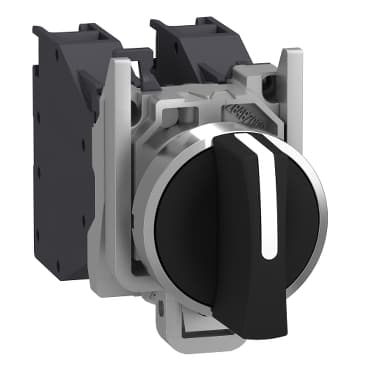

schneider XB4BD53GEX

Selling Points

  • 1High-performance power supply with 53A output current.
  • 2Compact design for easy integration into industrial systems.
  • 3Wide input voltage range for flexibility in various applications.
  • 4Built-in protection features for reliable operation and safety.
  • 5Compliant with international safety standards for industrial use.
Product Details
XB4BD53GEX
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Complete selector switch
Device short name
XB4
Bezel material
Chromium plated metal
Fixing collar material
Zamak
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Dust zone
Zone 21 - 22
Gas zone
Zone 1 - 2
Type of operator
To centre spring return
Operator profile
Black standard handle
Contacts type and composition
2 NO
Width
1.8 in (46.2 mm)
Height
1.2 in (30 mm)
Depth
3.3 in (85 mm)
Net Weight
0.251 lb(US) (0.114 kg)
Device mounting
Fixing hole 0.9 in (22.5 mm) +/- 0.2 mm IEC 60947-1
Fixing center
>= 30 x 40 mm support panel) 0.04…0.2 in (1…6 mm)
Embedding Depth
2.3 in (58 mm)
marking
Ex tb IIIC Db<br />Ex db eb IIC Gb<br />II 2 GD
Shape of signaling unit head
Round
Operator position information
3 positions +/- 45°
Contact operation
Slow-break
Contacts usage
Standard contacts
Positive opening
Without
Mechanical durability
5000000 cycles
Connections - terminals
Screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
Tightening torque
7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
[Ith] conventional free air thermal current
10 A IEC 60947-5-1
[Ui] rated insulation voltage
415 V
[Ie] rated operational current
1.9 A 380 V, AC, A600 IEC 60947-5-1<br />3 A 240 V, AC, A600 IEC 60947-5-1<br />6 A 120 V, AC, A600 IEC 60947-5-1<br />0.27 A 250 V, DC, Q300 IEC 60947-5-1<br />0.55 A 125 V, DC, Q300 IEC 60947-5-1<br />2.87 A 24 V, DC, Q300 IEC 60947-5-1
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-4…167 °F (-20…75 °C)
IP degree of protection
IP65 IEC 60529
Standards
IEC 60079-0:2009<br />EN/IEC 60079-1:2009<br />IEC 60079-7:2009<br />IEC 60079-31:2009<br />UL 60079-0<br />UL 60079-1<br />UL 60079-31<br />ANSI/ISA 12.12.01<br />CSA C22.2 No 213
Product Certifications
INERIS 04ATEX9004U

Specifications may be subject to change without notice
