schneider XB4BD912R100K

Selling Points

  • 1High-performance power supply with 100kVA capacity.
  • 2Reliable operation in demanding industrial environments.
  • 3Compact design for easy integration into systems.
  • 4Meets or exceeds international safety standards.
  • 5Ideal for data centers, manufacturing, and critical infrastructure.
Product Details

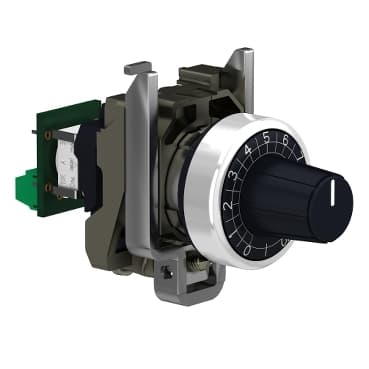

XB4BD912R100K
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Potentiometer
Device short name
XB4
Head type
Standard
Device presentation
Complete product
Bezel material
Chromium plated metal
Mounting diameter
0.9 in (22.5 mm)
Product Compatibility
Ø 6 mm shaft
Sale per indivisible quantity
1
CAD overall width
1.2 in (30 mm)
CAD overall height
1.9 in (47 mm)
CAD overall depth
3.2 in (82 mm)
Net Weight
0.209 lb(US) (0.095 kg)
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Electrical shock protection class
Class II IEC 60536
IP degree of protection
IP66 IEC 60529<br />IP69 IEC 60529<br />IP69K IEC 60529
NEMA degree of protection
NEMA 13<br />NEMA 4X
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
IK degree of protection
IK06 conforming to IEC 50102
Standards
UL 508<br />CSA C22.2 No 14<br />IEC 60947-1
Product Certifications
UL Listed<br />CSA<br />BV
Shape of signaling unit head
Round
Operator profile
knurled knob, with white)
[Us] rated supply voltage
<= 30 V AC<br /><= 42 V DC
Rated power in W
1 W 158 °F (70 °C)
Precision of internal conversion resistor
+-10%
Potentiometer characteristic
Linear
Mechanical durability
50000 cycles
Ohmic value
100000 Ohm
Material
Cermet
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Main group
Potentiometer
Group of product
Potentiometer knurled knob
Colour of marking
White

Specifications may be subject to change without notice
