Product Model

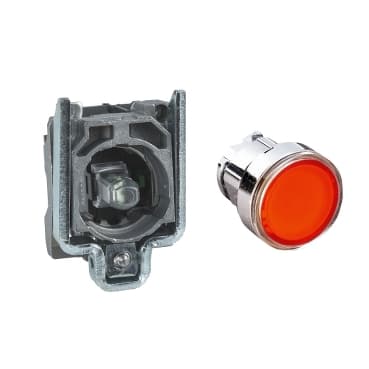

XB4BH04B2
Selling Points
- 1High-efficiency design for reduced energy consumption.
- 2Compact and space-saving footprint for easy installation.
- 3Robust construction with durable materials for long-lasting performance.
- 4Advanced thermal management for optimal cooling and reliability.
- 5Compatible with a wide range of industrial power systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Illuminated push-button |
Device short name | XB4 | Bezel material | Chromium plated metal |
Fixing collar material | Zamak | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Head type | Standard |
Shape of signaling unit head | Round | Operator additional information | With plain lens |
Contacts type and composition | 1 NO | Contact operation | Slow-break |
Light source | Protected LED | Bulb base | Integral LED |
[Us] rated supply voltage | 24 V AC/DC 50/60 Hz | Terminals description ISO n°1 | (13-14)NO |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Contacts usage | Standard contacts |
Positive opening | With EN/IEC 60947-5-1 appendix K | Operating travel | 0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) |
Mechanical durability | 5000000 cycles | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) EN 60947-1 |
Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm | Contacts material | Silver alloy (Ag/Ni) |
Short-circuit protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 | [Ith] conventional free air thermal current | 10 A EN/IEC 60947-5-1 |
[Ui] rated insulation voltage | 600 V 3)EN/IEC 60947-1 | [Uimp] rated impulse withstand voltage | 6 kV EN/IEC 60947-1 |
[Ie] rated operational current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1<br />6 A 120 V, AC-15, A600 EN/IEC 60947-5-1<br />0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1<br />0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1<br />0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1<br />1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 | Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
Electrical reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4<br />Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 | Signalling type | Steady |
current consumption | 18 mA | Service life | 100000 h at rated voltage and 25 °C |
Surge withstand | 1 kV IEC 61000-4-5 | Supply voltage limits | 19.2…30 V DC<br />21.6…26.4 V AC |
Device presentation | Complete product | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Electrical shock protection class | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
Standards | UL 508<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-4<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />JIS C8201-1 | Product Certifications | CSA<br />BV<br />UL Listed<br />DNV<br />GL<br />LROS (Lloyds register of shipping) |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Resistance to fast transients | 2 kV IEC 61000-4-4 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 | Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
