Product Model

XB4BP31GEX

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

34847

In Stock
Last updated: 2025/6/16
View Specifications

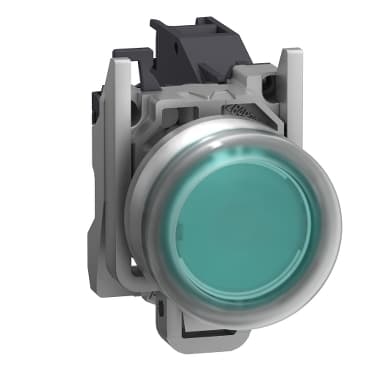

schneider XB4BP31GEX

Selling Points

  • 1Advanced Power Distribution: The XB4BP31GEX offers high-capacity power distribution with advanced circuitry for optimal performance.
  • 2Industrial-Grade Reliability: Built to withstand harsh industrial environments, ensuring continuous operation and minimal downtime.
  • 3Compact Design: Sleek and space-efficient design makes it ideal for installations in confined areas.
  • 4Enhanced Safety Features: Equipped with multiple safety features, including overcurrent protection and thermal monitoring.
  • 5Versatile Connectivity: Supports a variety of connection options, including busbars and terminal blocks for flexibility.
Product Details
XB4BP31GEX
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Complete push-button
Device short name
XB4
Bezel material
Chromium plated metal
Fixing collar material
Zamak
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Dust zone
Zone 21 - 22
Gas zone
Zone 1 - 2
Type of operator
spring return
Operator profile
Green projecting
Operator additional information
Booted (clear silicon)
Contacts type and composition
1 NO
Width
1.8 in (46.2 mm)
Height
1.2 in (30 mm)
Depth
2.8 in (72 mm)
Net Weight
0.196 lb(US) (0.089 kg)
Device mounting
Fixing hole 0.9 in (22.5 mm) +/- 0.2 mm EN/IEC 60947-1
Fixing center
>= 30 x 40 mm support panel) 0.04…0.2 in (1…6 mm)
Embedding Depth
2.3 in (58 mm)
marking
II 2 GD<br />Ex db eb IIC Gb<br />Ex tb IIIC Db
Shape of signaling unit head
Round
Contact operation
Slow-break
Positive opening
Without
Operating travel
0.065 in (1.657 mm) engagement point)<br />0.182 in (4.622 mm) changing state point)<br />0.175 in (4.452 mm) total travel)
Operating force
3.962 N
Mechanical durability
5000000 cycles
Connections - terminals
Screw clamp terminals, 2 x 1.5 mm² with cable end EN/IEC 60947-1<br />Screw clamp terminals, 1 x 2.5 mm² without cable end EN/IEC 60947-1
Tightening torque
7.08…10.6 lbf.in (0.8…1.2 N.m) EN 60947-1
[Ith] conventional free air thermal current
10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage
415 V
[Ie] rated operational current
1.9 A 380 V, AC, A600 EN/IEC 60947-5-1<br />3 A 240 V, AC, A600 EN/IEC 60947-5-1<br />6 A 120 V, AC, A600 EN/IEC 60947-5-1<br />0.27 A 250 V, DC, Q300 EN/IEC 60947-5-1<br />0.55 A 125 V, DC, Q300 EN/IEC 60947-5-1<br />2.87 A 24 V, DC, Q300 EN/IEC 60947-5-1
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-4…167 °F (-20…75 °C)
IP degree of protection
IP66 IEC 60529
Standards
EN/IEC 60079-0:2009<br />EN/IEC 60079-1:2009<br />EN/IEC 60079-7:2009<br />EN/IEC 60079-31:2009<br />UL 60079-0<br />UL 60079-1<br />UL 60079-31<br />ANSI/ISA 12.12.01<br />CSA C22.2 No 213
Product Certifications
INERIS 04ATEX9004U
